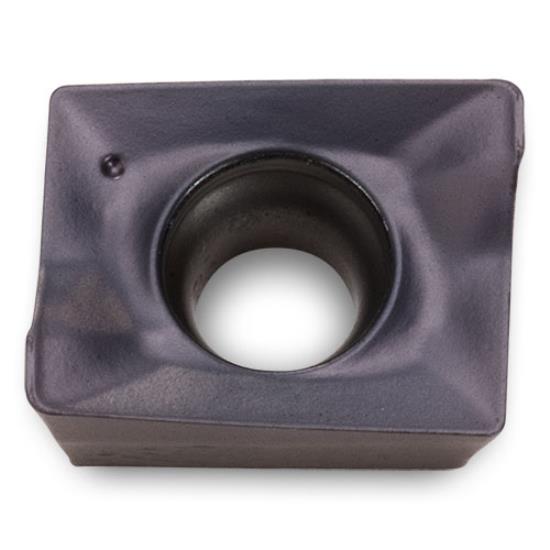

Apkt080304r In1030 Hipos Insert Carbide Iso Item #Aplh32r01 J In1030 Ingersoll Part #5803038 Re - Corner Radius: 0.015. Ih - Insert Hand: Right. Noi - Number Of Indexes: 2. S - Thickness: 0.136. Bs - Wiper Length: 0.030. Application: Multi-Purpose. Le - Cutting Edge Eff. Length: 0.220. Insl - Insert Length: 0.326. W1 - Insert Width: 0.247. Re - Corner Radius: 0.015. Ih - Insert Hand: Right. Noi - Number Of Indexes: 2. S - Thickness: 0.136. Bs - Wiper Length: 0.030. Application: Multi-Purpose. Le - Cutting Edge Eff. Length: 0.220. Insl - Insert Length: 0.326. W1 - Insert Width: 0.247.

• Pressed rake face geometry promotes efficient chip formation
• Integrated wiper flat on face for producing surface finishes as good as 32 Ra
• Designed for multiple materials and applications
• 2 Indexes
• Pressed rake face geometry promotes efficient chip formation
• Integrated wiper flat on face for producing surface finishes as good as 32 Ra
• Designed for multiple materials and applications
• 2 Indexes
• 90deg End Mill
• .30" Max. Depth of Cut
• Insert Corner: .015" and .031" R
• Insert with 2 Indexes
• 0.750-1.00"
• Weldon Shank
• 6 mm Insert with 2 indexes
• All Eff. / RH Helix
• 32-63 Ra surface finishes when engaging the wiper (WEP)
• Insert corners: S
• Insert corners: SC: .015" .031" R
