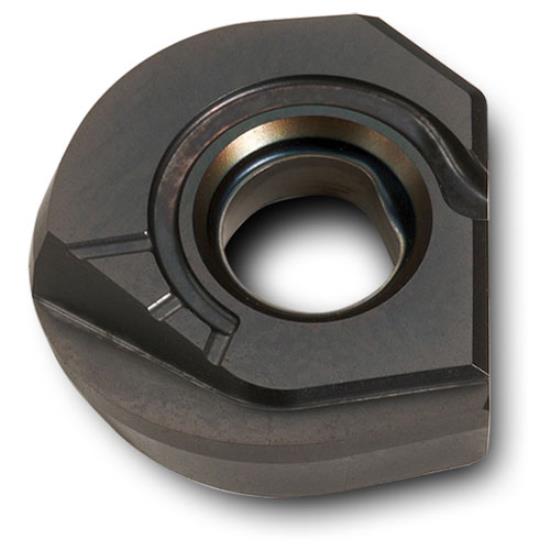

Nqhg310700r-Sm In2005 Finishball+ Insert Iso Item #Nqhg310700r-Sm In2005 Ingersoll Part #5813223 Apmx - Depth Of Cut Max.: 0.62. Re - Corner Radius: 0.625. Ih - Insert Hand: Right. Noi - Number Of Indexes: 1. Application: Ball Nose, Coolant Through. Dc - Cutting Diameter : 1.250. S1 - Thickness (Overall): 0.283. Apmx - Depth Of Cut Max.: 0.62. Re - Corner Radius: 0.625. Ih - Insert Hand: Right. Noi - Number Of Indexes: 1. Application: Ball Nose, Coolant Through. Dc - Cutting Dia.: 1.250. S1 - Thickness (Overall): 0.283.

• Milling Insert
• 0.375"-1.250"
• Milling Insert
• 0.375"-1.250"
• 0.375-1.250"
• Cylindrical Shank (Steel)
• Ball nose & backdraft insert options
• Coolant directed to cutting edge via coolant channels on insert
• High-precision insert with 1 index
• 0.375-1.250"
• TopOn Connection
• Ball nose & backdraft insert options
• Coolant directed to cutting edge via coolant channels on insert
• High-precision insert with 1 index
