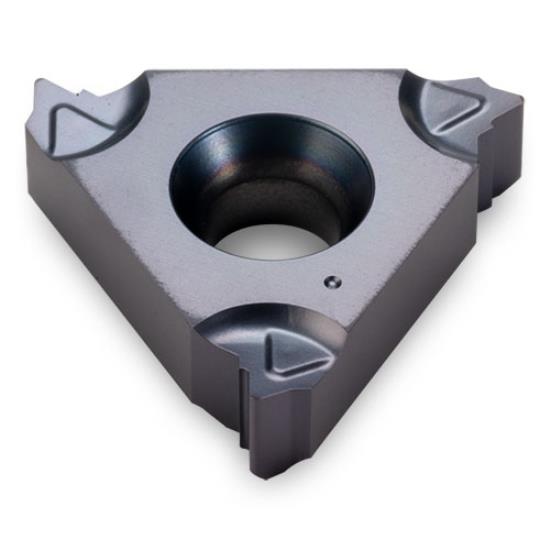

16Er8npt Tt9030 Threading Insert Iso Iso Item #16Er8npt Tt9030 Ingersoll Part #5901968 Nt - Tooth Count: 1. Re - Corner Radius: 0.005. Pdx - Profile Distance Ex: 0.071. Ih - Insert Hand: Right. Thft - Thread Form Type: Npt60 - National Pipe Thread 60°. Tpt - Thread Profile Type: Full. Tpi - Threads Per Inch: 8. Insl - Insert Length: 0.630. Ttp - Thread Type: External. Ic - Inscribed Circle Diameter : 0.375. Pdy - Profile Distance Ey: 0.051. Nt - Tooth Count: 1. Re - Corner Radius: 0.005. Pdx - Profile Distance Ex: 0.063. Ih - Insert Hand: Right. Thft - Thread Form Type: Npt60 - National Pipe Thread 60°. Ttp - Thread Type: External. Tpt - Thread Profile Type: Full. Noi - Number Of Indexes: 3. Tpi - Threads Per Inch: 8. Insl - Insert Length: 0.649. Ic - Inscribed Circle Dia.: 0.375. Pdy - Profile Distance Ey: 0.051.

• National Pipe Thread-Taper
• Pressed Chipbreaker/Peripheral Ground
• Full Profile
• ANSI/ASME B1.20.1-1983
• National Pipe Taper
• Ground Chipbreaker
• Full Profile
• ANSI/ASME B1.20.1-1983
• C-Adapter (ISO 26623-1)
• Lay Down Threading Inserts
• Screw Held
• C4-C6
• Coolant Thru
• Lay Down Threading Inserts
• Screw Held
• .375-1.250" Shank
• Lay Down Threading Inserts
• Screw Held
• 1.000" Shank
• High Pressure Coolant
