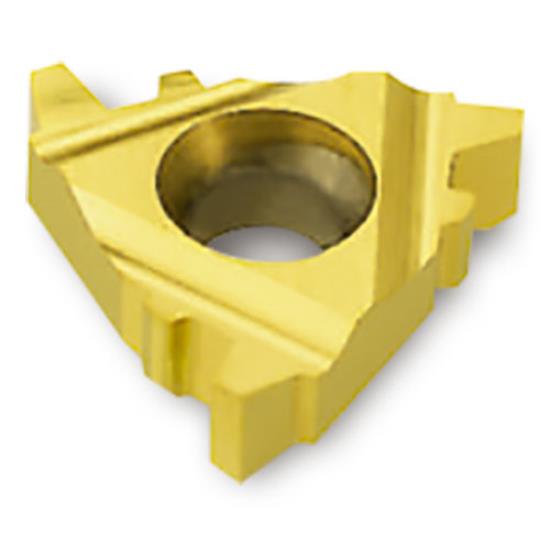

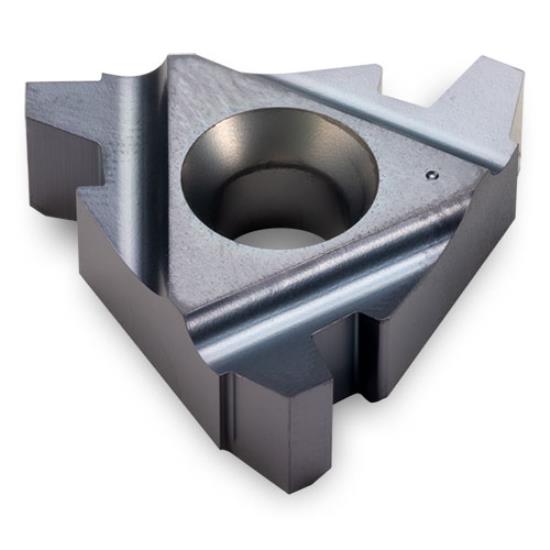

16IR16ACME TT7010 Threading Insert ISO

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
16IR16ACME TT7010 Threading Insert ISO 16IR16ACME TT7010 Threading Insert ISO 16IR16ACME TT7010 Threading Insert ISO 16IR16ACME TT7010 Threading Insert ISO
INGERSOLL CUTTING TOOLS
5902574
5902574
16IR16ACME TT7010
16IR16ACME TT7010
Weight: 0.011 LBS
Brand: INGERSOLL CUTTING TOOLS
$37.20
(14% off)
$32.13
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

16Ir16acme Tt7010 Threading Insert Iso Iso Item #16Ir16acme Tt7010 Ingersoll Part #5902574 Nt - Tooth Count: 1. Pdx - Profile Distance Ex: 0.043. Ih - Insert Hand: Right. Thft - Thread Form Type: Ac29 - Acme 29°. Tpt - Thread Profile Type: Partial Topping. Tpi - Threads Per Inch: 16. Tctr - Thread Tolerance Class: 3G. Insl - Insert Length: 0.630. Ttp - Thread Type: Internal. Ic - Inscribed Circle Diameter : 0.375. Pdy - Profile Distance Ey: 0.039. Nt - Tooth Count: 1. Pdx - Profile Distance Ex: 0.039. Ih - Insert Hand: Right. Thft - Thread Form Type: Ac29 - Acme 29°. Ttp - Thread Type: Internal. Tpt - Thread Profile Type: Partial Topping. Noi - Number Of Indexes: 3. Tpi - Threads Per Inch: 16. Tctr - Thread Tolerance Class: 3G. Insl - Insert Length: 0.649. Ic - Inscribed Circle Dia.: 0.375. Pdy - Profile Distance Ey: 0.035.

  • Ground Chipbreaker
  • ASME/ANSI B1.5-1988 Class: 3G
  • Partial Topping Inserts Provide Corner Breaking on Thread Crest
  • Ground Chipbreaker
  • ASME/ANSI B1.5-1988 Class: 3G
  • Partial Topping Inserts Provide Corner Breaking on Thread Crest
  • C-Adapter (ISO 26623-1)
  • Lay Down Threading Inserts
  • Screw Held
  • C4-C6
  • Coolant Thru
  • Lay Down Threading Inserts
  • Screw Held
  • T-Modular Connection
  • 25-40 mm
  • Coolant Thru
  • Lay Down Threading Inserts
  • Screw Held
  • .375-2.500" Shank
  • Lay Down Threading Inserts
  • Screw Held
  • 8 mm & .375-1.500" Shank
  • Coolant Thru
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
5902574
Hand
Right
Grade
TT7010
