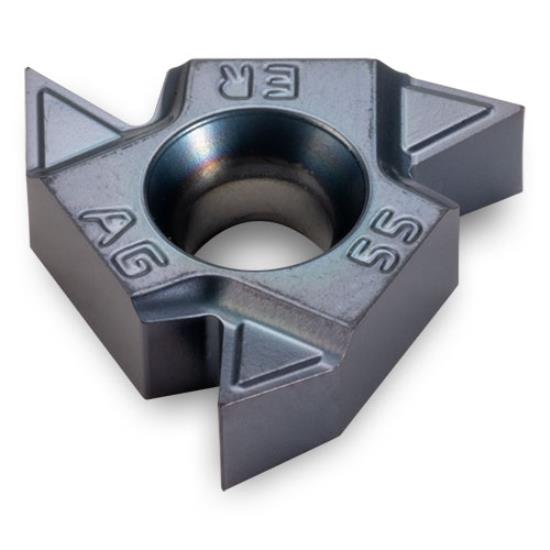

16Ermag55 Tt9030 Threading Insert Iso Iso Item #16Ermag55 Tt9030 Ingersoll Part #5921213 Nt - Tooth Count: 1. Re - Corner Radius: 0.002. Pdx - Profile Distance Ex: 0.067. Ih - Insert Hand: Right. Thft - Thread Form Type: Vp55 - V-Profile 55°. Tpt - Thread Profile Type: Partial. Insl - Insert Length: 0.630. Ttp - Thread Type: External. Ic - Inscribed Circle Diameter : 0.375. Pdy - Profile Distance Ey: 0.047. Tpn - Thread Pitch Min.: 0.5 Mm. Tpx - Thread Pitch Max.: 3.0 Mm. Tpin - Threads Per Inch Min.: 8. Tpix - Threads Per Inch Max.: 48. Nt - Tooth Count: 1. Re - Corner Radius: 0.003. Pdx - Profile Distance Ex: 0.067. Ih - Insert Hand: Right. Thft - Thread Form Type: Vp55 - V-Profile 55°. Ttp - Thread Type: External. Tpt - Thread Profile Type: Partial. Noi - Number Of Indexes: 3. Insl - Insert Length: 0.649. Ic - Inscribed Circle Dia.: 0.375. Tpin - Threads Per Inch Min.: 8. Tpix - Threads Per Inch Max.: 48. Tpn - Thread Pitch Min.: 0.50 Mm. Tpx - Thread Pitch Max.: 3.0 Mm. Pdy - Profile Distance Ey: 0.047.

• V-Profile Thread 55 Degree
• Pressed Chipbreaker
• V-Profile Thread 55deg
• Pressed Chipbreaker
• C-Adapter (ISO 26623-1)
• Lay Down Threading Inserts
• Screw Held
• C4-C6
• Coolant Thru
• Lay Down Threading Inserts
• Screw Held
• .375-1.250" Shank
• Lay Down Threading Inserts
• Screw Held
• 1.000" Shank
• High Pressure Coolant
