TDC3 TT5100 TClampUltra+ Insert

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
TDC3 TT5100 TClampUltra+ Insert TDC3 TT5100 TClampUltra+ Insert TDC3 TT5100 TClampUltra+ Insert TDC3 TT5100 TClampUltra+ Insert
INGERSOLL CUTTING TOOLS
6000537
6000537
TDC3 TT5100
TDC3 TT5100
Weight: 0.01 LBS
Brand: INGERSOLL CUTTING TOOLS
$39.95
(14% off)
$34.50
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

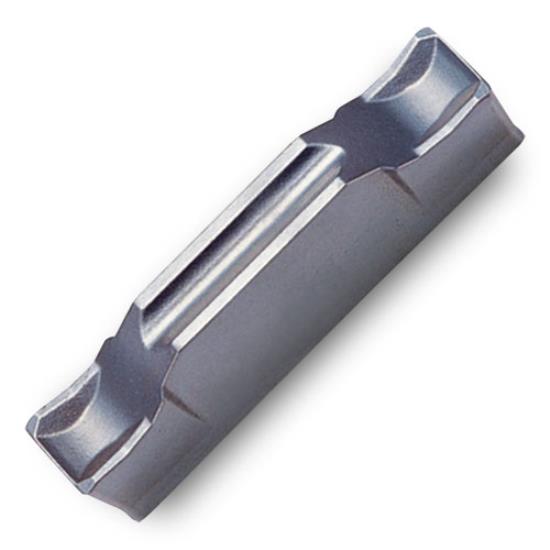

Tdc3 Tt5100 Tclampultra+ Insert Iso Item #Tdc3 Tt5100 Ingersoll Part #6000537 Ssc - Insert Seat Size: 3. Wb - Body Width: 0.094. Cdx - Cutting Depth Max.: 0.748. Daxin - Axial Groove I.D. Min.: 2.126. Dmin - Min. Bore Diameter : 1.968. Re - Corner Radius: 0.008. Ih - Insert Hand: Neutral. Noi - Number Of Indexes: 2. Cw - Cutting Width: 0.118. Feedgn - Grooving Feed Min.: 0.003. Feedgx - Grooving Feed Max.: 0.010. Insl - Insert Length: 0.790. S1 - Thickness: 0.185. An - Clearance Angle Major: 7.

  • Double-ended inserts for parting and grooving
  • C-type Chipbreakers
  • Not for lateral Turning
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
6000537
Radius Size
0.008"
Tool Coating
TiCN+Al2O3
Hand
Neutral
Grade
TT5100
