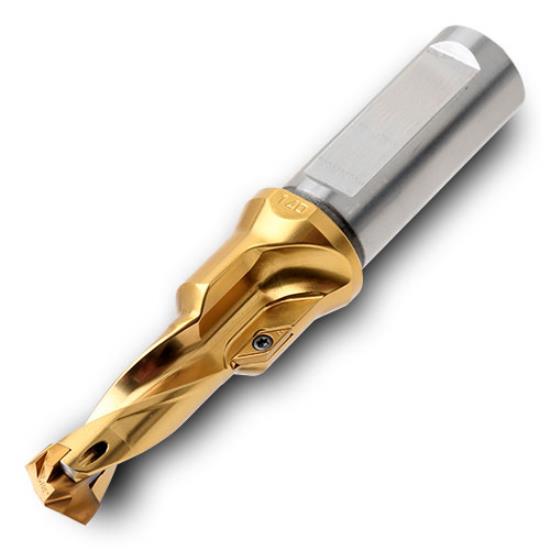

TC1230026C0R01 GoldTwist Chamfer Body
This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
6102440
6102440
TC1230026C0R01
TC1230026C0R01
Weight: 0.375 LBS
Brand: INGERSOLL CUTTING TOOLS
Product Description

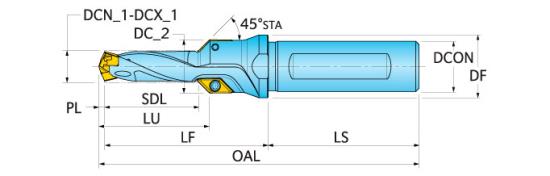

Tc1230026c0r01 Goldtwist Chamfer Body Iso Item #Tc1230026c0r01 Ingersoll Part #6102440 Oal - Overall Length: 4.13. Dcon - Shank Diameter : 0.6250. Lu - Usable Length: 1.24. Lf - Functional Length: 2.240. Ls - Shank Length: 1.89. Ssc - Insert Seat Size: 12. Dcx - Cutting Diameter Max.: 0.4882. Df - Flange Diameter : 0.79. Dcn - Cutting Diameter Min.: 0.4724. Tdz - Thread Size: 9/16 Unc. Dcnom - Cutting Diameter Nom.: 0.484. Dc2 - Chamfer Diameter : 0.7680. Sdl - Step Diameter Length: 1.059. Oal - Overall Length: 4.13. Dcon - Shank Dia.: 0.6250. Pl - Point Length: 0.074. Lu - Usable Length: 1.26. Lf - Functional Length: 2.170. Ls - Shank Length: 1.89. Ssc - Insert Seat Size: 12. Dcx - Cutting Dia. Max.: 0.4882. Dcn - Cutting Dia. Min.: 0.4724. Tdz - Thread Size: 9/16 Unc. Dcnom - Cutting Dia. Nom.: 0.484. Dc2 - Chamfer Dia.: 0.7680. Sdl - Step Dia. Length: 1.074.
- Universal Shank with Flange
- Combines Drilling & Chamfering in One Operation
- Coolant Through
- Holds +.002/.000 on Hole Diameter
- Universal Shank with Flange
- Combines Drilling & Chamfering in One Operation
- Coolant Through
- Holds +.002/.000 on Hole Diameter
- 0.2362-1.0197" (6.0-25.9 mm)
- Cast Iron Applications
- Grade IN2505
- Holds +.002/-.000 on Diameter
- 0.2362-1.0197" (6.0-25.9 mm)
- Stainless Steel & Exotics Applications
- Grade IN2505
- Holds +.002/-.000 on Diameter
- 0.2362-1.0000" (6.0-25.4 mm)
- Non-Ferrous Applications
- Grade IN05S
- Holds +.002/-.000 on Diameter
- 0.1574"-1.0197" (4.0-25.9 mm)
- Steel & General Purpose Applications
- Grade IN2505
- Holds +.002/-.000 on Diameter
- 0.2362-1.0197" (6.0-25.9 mm)
- 2-Flute Self-Centering Geometry
- Steel & Cast Iron Applications
- Grade IN2505
- Holds +.002/-.000 on Diameter
- 0.3125-1.0118" (8.0-25.7 mm)
- Steel & General Purpose Applications
- Grade IN2505
- Holds +.002/-.000 on Diameter
Shipping & Delivery Options
Illinois
Suncoast Shipping Deals
| Min. order amount |
Shipping Option |
Special Rate |
Max Weight |
|
$50.00
|
UPS Blue 2 Business Days |
$19.99 |
5 LBS |
| Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout. |
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Additional Product Details
Technical Details
- Manufacturer
- INGERSOLL CUTTING TOOLS
- Manufacturer Part Number
- 6102440
- Overall Length
- 4.134"
