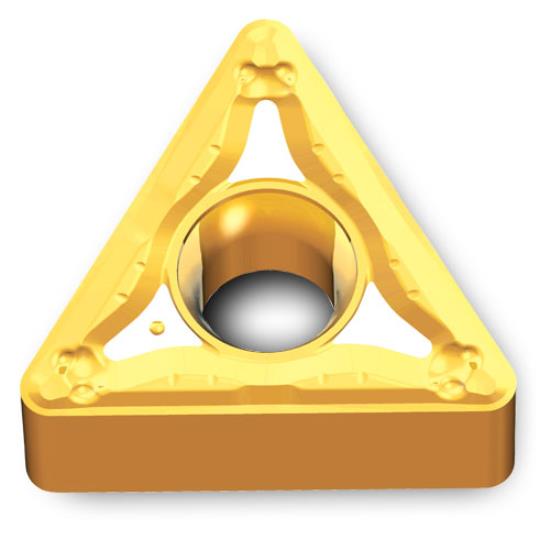

TNMG2.531PC / TNMG130404PC Grade TT5100 Carbide Negative Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with PC Chipbreaker for Semi-Finish to Medium Turning Stainless, Steel, HRSA

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
TNMG2.531PC / TNMG130404PC Grade TT5100 Carbide Negative Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with PC Chipbreaker for Semi-Finish to Medium Turning Stainless, Steel, HRSA TNMG2.531PC / TNMG130404PC Grade TT5100 Carbide Negative Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with PC Chipbreaker for Semi-Finish to Medium Turning Stainless, Steel, HRSA
INGERSOLL CUTTING TOOLS
6104354
6104354
TNMG130404PC TT5100
TNMG2.531PC TT5100
Weight: 0.014 LBS
Brand: INGERSOLL CUTTING TOOLS
$12.50
(47% off)
$6.63
each
7/31/2026
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Ingersoll Tnmg2.531Pc / Tnmg130404pc Is A Negative Turning Insert With Hole From The Gold Rhino Iso Turning Insert Family. Ingersoll's Rhinoturn Approach Puts Standard Iso-Style Turning Performance Into A Smaller, Rugged Insert Package; The Insert Stays Thick For Strength While The Smaller Ic Helps Lower Tooling Cost. Use It Where A 1/2" Ic Style Is More Insert Than The Job Requires But Stable Tool Life And Repeatable Indexing Still Matter. This Tnmg Insert Is Made In Grade Tt5100 Carbide Using Tin+Ticn+Al2o3+Tin Coated Finish And The Pc Chipbreaker For Semi-Finish To Medium Turning. It Provides 6 Usable Cutting Edges In A 60° Triangular Geometry. Key Dimensions Include 0.313" Ic, 0.187" Thickness, 0.016" Corner Radius. Recommended Workpiece Materials Include Stainless Steel, Steel And Heat-Resistant Super Alloys (Hrsa). Tt5100 Is A Tough Cvd Carbide Grade For Mild, Low-Carbon And Gummy Steels Where Sticking And Edge Chipping Can Be A Concern. Iso Application Range M15-M35, P20-P40, S15-S35. Pc Is A Positive-Geometry Chipbreaker For Medium To Semi-Finishing Operations, Especially Steel And Automotive Components. Use With The Correct Ingersoll Holder Or Boring Bar For Stable Seating, Repeatable Indexing, Dependable Chip Control And Consistent Surface Finish. Ingersoll Part # 6104354

  • TNMG2.531PC / TNMG130404PC TNMG negative turning insert with hole
  • Smaller IC helps lower insert cost while robust thickness supports durability
  • Economical alternative to larger standard ISO inserts in many production jobs
  • 6 usable cutting edges; 60° triangular geometry; 0.313" IC; 0.187" thick; 0.016" corner radius
  • Grade TT5100 carbide with TiN+TiCN+Al2O3+TiN coated finish
  • PC chipbreaker for Semi-Finish to Medium Turning
  • Recommended for ISO M15-M35, P20-P40, S15-S35; stainless steel, steel, and heat-resistant super alloys (HRSA)
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
6104354
ISO Part Number
TNMG130404PC
ANSI Part Number
TNMG2.531PC
Radius Size
0.016"
Thickness
0.187"
Material
Stainless, Steel, HRSA
Tool Coating
TiN+TiCN+Al2O3+TiN
Tool Substrate Material
Carbide
Primary Application
Semi-Finish to Medium Turning
Hand
Neutral
Included Angle
60°
Material Food Group
M15-M35, P20-P40, S15-S35
Grade
TT5100
Series
TNMG
Style
With Hole
Model
Gold Rhino ISO
Size
2.531
Type
Negative Turning Insert
Inscribed Circle
0.313"
Chip Breaker
PC
Number Of Points
6
