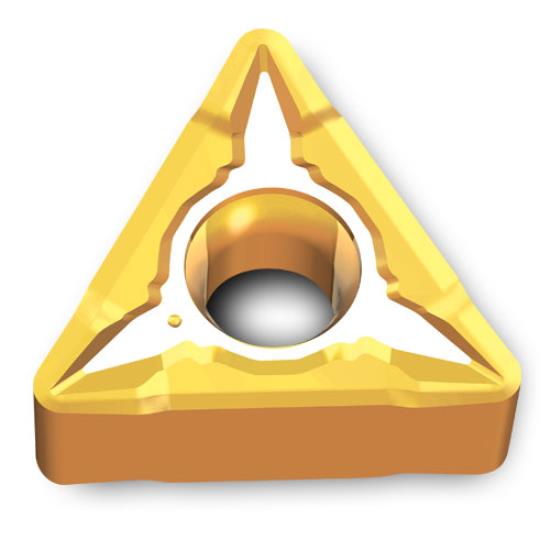

TNMG2.531EA / TNMG130404EA Grade TT5080 Carbide Negative Turning Insert With Hole, AlTiN+TiN Coated with EA Chipbreaker for Super Finish Turning Stainless, HRSA

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
TNMG2.531EA / TNMG130404EA Grade TT5080 Carbide Negative Turning Insert With Hole, AlTiN+TiN Coated with EA Chipbreaker for Super Finish Turning Stainless, HRSA TNMG2.531EA / TNMG130404EA Grade TT5080 Carbide Negative Turning Insert With Hole, AlTiN+TiN Coated with EA Chipbreaker for Super Finish Turning Stainless, HRSA
INGERSOLL CUTTING TOOLS
6118350
6118350
TNMG130404EA TT5080
TNMG2.531EA TT5080
Weight: 0.014 LBS
Brand: INGERSOLL CUTTING TOOLS
$12.50
(47% off)
$6.63
each
7/31/2026
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Ingersoll Tnmg2.531Ea / Tnmg130404ea Is A Negative Turning Insert With Hole From The Gold Rhino Iso Turning Insert Family. Ingersoll's Rhinoturn Approach Puts Standard Iso-Style Turning Performance Into A Smaller, Rugged Insert Package; The Insert Stays Thick For Strength While The Smaller Ic Helps Lower Tooling Cost. It Is An Economical Alternative To Larger Standard Iso Inserts For Many Turning, Facing And Profiling Jobs. This Tnmg Insert Is Made In Grade Tt5080 Carbide Using Altin+Tin Coated Finish And The Ea Chipbreaker For Super Finish Turning. It Provides 6 Usable Cutting Edges In A 60° Triangular Geometry. Key Dimensions Include 0.313" Ic, 0.187" Thickness, 0.016" Corner Radius. Recommended Workpiece Materials Include Stainless Steel And Heat-Resistant Super Alloys (Hrsa). Tt5080 Is A Hard Submicron Pvd Carbide Grade For Stainless Steels, High-Temperature Alloys And Gummy Materials Requiring A Sharp, Wear-Resistant Edge. Iso Application Range M05-M25, S05-S25. Ea Is A Finishing Chipbreaker For Exotic And Gummy Materials, With Chip Control At Low Feeds And Shallow Depths Of Cut. Use With The Correct Ingersoll Holder Or Boring Bar For Stable Seating, Repeatable Indexing, Dependable Chip Control And Consistent Surface Finish. Ingersoll Part # 6118350

  • TNMG2.531EA / TNMG130404EA TNMG negative turning insert with hole
  • Smaller IC helps lower insert cost while robust thickness supports durability
  • Economical alternative to larger standard ISO inserts in many production jobs
  • 6 usable cutting edges; 60° triangular geometry; 0.313" IC; 0.187" thick; 0.016" corner radius
  • Grade TT5080 carbide with AlTiN+TiN coated finish
  • EA chipbreaker for Super Finish Turning
  • Recommended for ISO M05-M25, S05-S25; stainless steel and heat-resistant super alloys (HRSA)
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
6118350
ISO Part Number
TNMG130404EA
ANSI Part Number
TNMG2.531EA
Radius Size
0.016"
Thickness
0.187"
Material
Stainless, HRSA
Tool Coating
AlTiN+TiN
Tool Substrate Material
Carbide
Primary Application
Super Finish Turning
Hand
Neutral
Included Angle
60°
Material Food Group
M05-M25, S05-S25
Grade
TT5080
Series
TNMG
Style
With Hole
Model
Gold Rhino ISO
Size
2.531
Type
Negative Turning Insert
Inscribed Circle
0.313"
Chip Breaker
EA
Number Of Points
6
