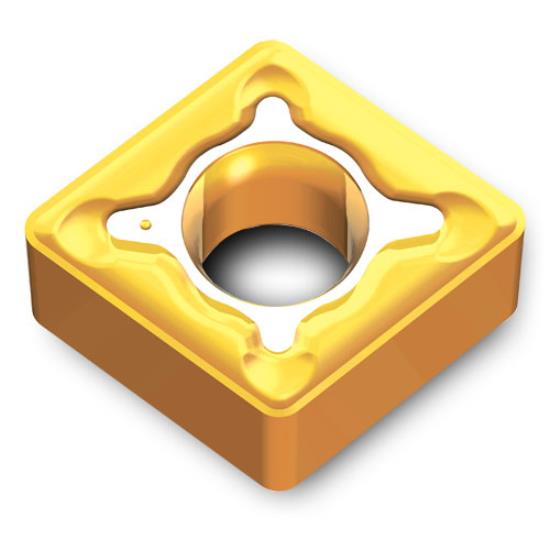

CNMG332MM / CNMG090408MM Grade TT9080 Carbide Negative Turning Insert With Hole, TiAlN+TiN Coated with MM Chipbreaker for General Turning Stainless, Steel, HRSA

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
CNMG332MM / CNMG090408MM Grade TT9080 Carbide Negative Turning Insert With Hole, TiAlN+TiN Coated with MM Chipbreaker for General Turning Stainless, Steel, HRSA CNMG332MM / CNMG090408MM Grade TT9080 Carbide Negative Turning Insert With Hole, TiAlN+TiN Coated with MM Chipbreaker for General Turning Stainless, Steel, HRSA
INGERSOLL CUTTING TOOLS
6125653
6125653
CNMG090408MM TT9080
CNMG332MM TT9080
Weight: 0.016 LBS
Brand: INGERSOLL CUTTING TOOLS
$15.25
(47% off)
$8.08
each
7/31/2026
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Ingersoll Cnmg332mm / Cnmg090408mm Gives Machinists A Compact Rhino-Style Negative Turning Insert With Hole In The Cnmg Series. Rhinoturn Inserts Are Made To Do The Work Of Larger Iso Inserts In Many Jobs While Reducing Insert Size And Cost; The Robust Thickness Helps Retain Strength, Heat Capacity And Stability. The Compact Design Helps Reduce Cost Per Edge While Supporting The Same Type Of Production Work Normally Assigned To Larger Iso Inserts. This Cnmg Insert Is Made In Grade Tt9080 Carbide Using Tialn+Tin Coated Finish And The Mm Chipbreaker For General Turning. It Provides 4 Usable Cutting Edges In An 80° Rhombic Geometry. Key Dimensions Include 0.375" Ic, 0.187" Thickness, 0.031" Corner Radius. Recommended Workpiece Materials Include Stainless Steel, Steel And Heat-Resistant Super Alloys (Hrsa). Tt9080 Is A Pvd Carbide Grade With Good Fracture Toughness For Stainless Steel, Steel And High-Temperature Alloy Turning. Iso Application Range M20-M40, P20-P40, S20-S40. Mm Is A Medium-Machining Chipbreaker For Broad Steel And Stainless Turning Applications. Use With The Correct Ingersoll Holder Or Boring Bar For Stable Seating, Repeatable Indexing, Dependable Chip Control And Consistent Surface Finish. Ingersoll Part # 6125653

  • CNMG332MM / CNMG090408MM CNMG negative turning insert with hole
  • Designed to do the work of larger ISO inserts when the extra IC size is not needed
  • Compact Gold-Rhino/RhinoTurn size technology built for full-strength turning performance
  • 4 usable cutting edges; 80° rhombic geometry; 0.375" IC; 0.187" thick; 0.031" corner radius
  • Grade TT9080 carbide with TiAlN+TiN coated finish
  • MM chipbreaker for General Turning
  • Recommended for ISO M20-M40, P20-P40, S20-S40; stainless steel, steel, and heat-resistant super alloys (HRSA)
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
6125653
ISO Part Number
CNMG090408MM
ANSI Part Number
CNMG332MM
Radius Size
0.031"
Thickness
0.187"
Material
Stainless, Steel, HRSA
Tool Coating
TiAlN+TiN
Tool Substrate Material
Carbide
Primary Application
General Turning
Hand
Neutral
Included Angle
80°
Material Food Group
M20-M40, P20-P40, S20-S40
Grade
TT9080
Series
CNMG
Style
With Hole
Model
Gold Rhino ISO
Size
332
Type
Negative Turning Insert
Inscribed Circle
0.375"
Chip Breaker
MM
Number Of Points
4
