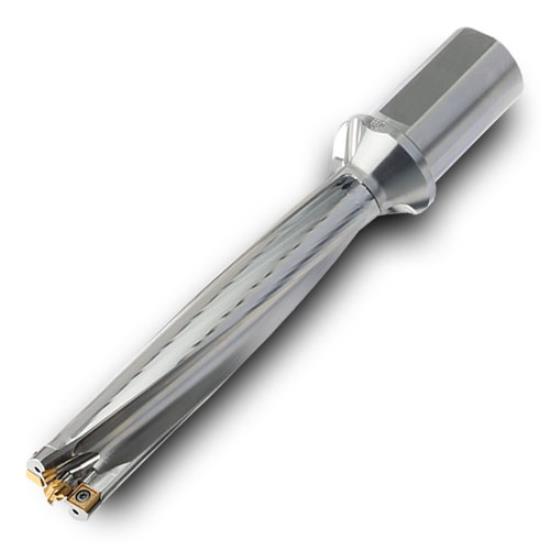

38.00mm Diameter CD3800190JHR00 GoldTwin Body
This item is not available for shipping OR sale for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR.
6140140
6140140
CD3800190JHR00
CD3800190JHR00
Weight: 2.976 LBS
Brand: INGERSOLL CUTTING TOOLS
Product Description
Cd3800190jhr00 Goldtwin Body Iso Item #Cd3800190jhr00 Ingersoll Part #6140140 Dc - Cutting Diameter : 38.00 Mm. Oal - Overall Length: 306.9 Mm. Zeff - Eff. Teeth: 2. Dcon - Shank Diameter : 40.0 Mm. Pl - Point Length: 4.28 Mm. Lu - Usable Length: 194.0 Mm. Lf - Functional Length: 238.90 Mm. Ls - Shank Length: 70.0 Mm. Df - Flange Diameter : 50.0 Mm. Uldr - Usable Length Diameter Ratio: 5Ã?. Dc - Cutting Dia.: 38.00 Mm. Oal - Overall Length: 306.9 Mm. Zeff - Eff. Teeth: 2. Dcon - Shank Dia.: 40.0 Mm. Pl - Point Length: 4.28 Mm. Lu - Usable Length: 194.0 Mm. Lf - Functional Length: 238.90 Mm. Ls - Shank Length: 70.0 Mm. Df - Flange Dia.: 50.0 Mm. Uldr - Usable Length Dia. Ratio: 5Ã?.
- 026.0-45.0mm
- Universal Shank (Metric)
- Two Effective
- Holds +.003/-.000 on Hole Diameter
- Coolant Through
- 026.0-45.0 mm
- Universal Shank (Metric)
- Two Effective
- Holds +.003/-.000 on Hole Diameter
- Coolant Through
- 0 .6260-.9803 (15.9-24.9 mm)
- Steel/General Purpose Applications
- Gold Twist modified standard replaceable tip for Gold Twin body
- Grade IN2505
- Holds +.002/-.000 on diameter
- Eccentric Sleeve (Metric)
- Used to enlarge or reduce metric nominal drill diameters
- Note: The pin, or allen wrench, required to facilitate radial adjustment of the sleeve is not included
Shipping & Delivery Options
Illinois
Suncoast Shipping Deals
| Min. order amount |
Shipping Option |
Special Rate |
Max Weight |
|
$50.00
|
UPS Blue 2 Business Days |
$19.99 |
5 LBS |
| Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout. |
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Additional Product Details
Technical Details
- Manufacturer
- INGERSOLL CUTTING TOOLS
- Manufacturer Part Number
- 6140140
- Cutter Diameter
- 38.00mm
- Overall Length
- 306.9 mm
