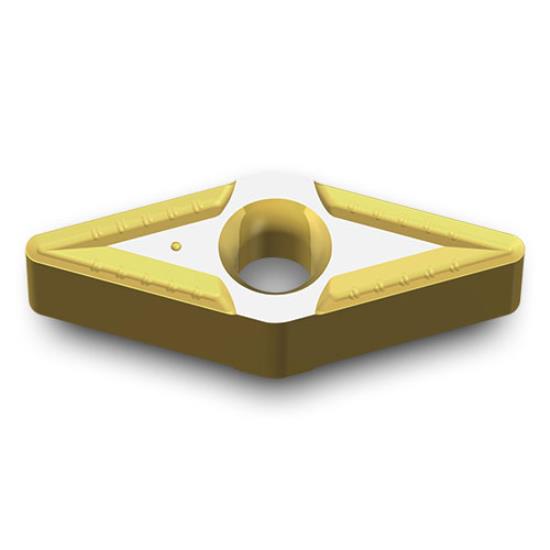

VNMX2.532MK / VNMX130408MK Grade TT9225 Carbide Negative Turning Insert With Hole, TiCN+Al2O3+TiCN Coated with MK Chipbreaker for Medium Turning Stainless, HRSA

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
VNMX2.532MK / VNMX130408MK Grade TT9225 Carbide Negative Turning Insert With Hole, TiCN+Al2O3+TiCN Coated with MK Chipbreaker for Medium Turning Stainless, HRSA VNMX2.532MK / VNMX130408MK Grade TT9225 Carbide Negative Turning Insert With Hole, TiCN+Al2O3+TiCN Coated with MK Chipbreaker for Medium Turning Stainless, HRSA
INGERSOLL CUTTING TOOLS
6141274
6141274
VNMX130408MK TT9225
VNMX2.532MK TT9225
Weight: 0.022 LBS
Brand: INGERSOLL CUTTING TOOLS
$22.80
(47% off)
$12.08
each
7/31/2026
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Ingersoll Vnmx2.532Mk / Vnmx130408mk Gives Machinists A Compact Rhino-Style Negative Turning Insert With Hole In The Vnmx Series. The Gold-Rhino/Rhinoturn Design Philosophy Is Simple: Use A Smaller Insert Where The Application Does Not Need A Larger Ic, But Keep The Thickness And Seating Strength Needed For Dependable Production Turning. This Makes It A Practical Choice For Cost-Conscious Shops That Still Need Reliable Edge Strength, Chip Control And Surface Finish. This Vnmx Insert Is Made In Grade Tt9225 Carbide Using Ticn+Al2o3+Ticn Coated Finish And The Mk Chipbreaker For Medium Turning. It Provides 4 Usable Cutting Edges In A 35° Rhombic Geometry. Key Dimensions Include 0.313" Ic, 0.187" Thickness, 0.031" Corner Radius. Recommended Workpiece Materials Include Stainless Steel And Heat-Resistant Super Alloys (Hrsa). Tt9225 Is A Cvd Carbide Grade For General Stainless Steel Machining With A Balance Of Wear And Fracture Resistance. Iso Application Range M15-M30, S15-S30. Mk Is A Stainless And Heat-Resistant Material Chipbreaker With A Stable Rake Face And Positive Cutting Angle To Reduce Built-Up Edge. Vnmx Provides A Compact 35° Double-Sided Insert System With Ground Seating Surfaces For Stable Profiling And Light-Depth Turning. Use With The Correct Ingersoll Holder Or Boring Bar For Stable Seating, Repeatable Indexing, Dependable Chip Control And Consistent Surface Finish. Ingersoll Part # 6141274

  • VNMX2.532MK / VNMX130408MK VNMX negative turning insert with hole
  • Rhino-tough compact insert body for stable cutting in compatible holders
  • Designed to do the work of larger ISO inserts when the extra IC size is not needed
  • 4 usable cutting edges; 35° rhombic geometry; 0.313" IC; 0.187" thick; 0.031" corner radius
  • Grade TT9225 carbide with TiCN+Al2O3+TiCN coated finish
  • MK chipbreaker for Medium Turning
  • VNMX provides a compact 35° double-sided insert system with ground seating surfaces for stable profiling and light-depth turning
  • Recommended for ISO M15-M30, S15-S30; stainless steel and heat-resistant super alloys (HRSA)
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
6141274
ISO Part Number
VNMX130408MK
ANSI Part Number
VNMX2.532MK
Radius Size
0.031"
Thickness
0.187"
Material
Stainless, HRSA
Tool Coating
TiCN+Al2O3+TiCN
Tool Substrate Material
Carbide
Primary Application
Medium Turning
Hand
Neutral
Included Angle
35°
Material Food Group
M15-M30, S15-S30
Grade
TT9225
Series
VNMX
Style
With Hole
Model
Gold Rhino VNMX
Size
2.532
Type
Negative Turning Insert
Inscribed Circle
0.313"
Chip Breaker
MK
Number Of Points
4
