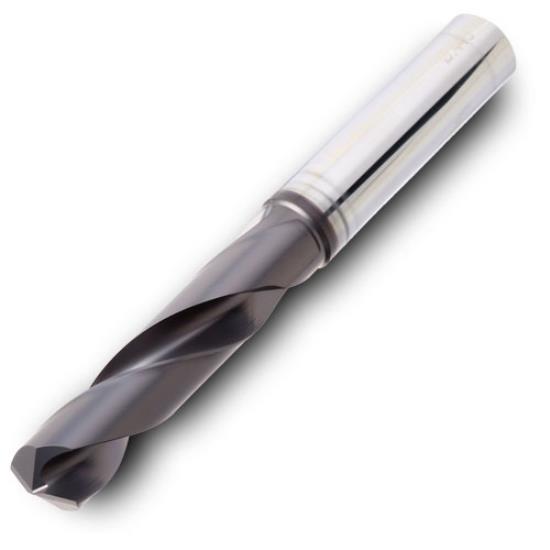

0.3701" (9.40mm) Diameter DJ0940035T1R01 IN2005 Solid Carbide Drill

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
0.3701" (9.40mm) Diameter DJ0940035T1R01 IN2005 Solid Carbide Drill 0.3701" (9.40mm) Diameter DJ0940035T1R01 IN2005 Solid Carbide Drill
INGERSOLL CUTTING TOOLS
6154771
6154771
DJ0940035T1R01 IN2005
DJ0940035T1R01 IN2005
Weight: 0.17 LBS
Brand: INGERSOLL CUTTING TOOLS
$178.00
(14% off)
$153.74
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Dj0940035t1r01 In2005 Solid Carbide Drill Iso Item #Dj0940035t1r01 In2005 Ingersoll Part #6154771 Dc - Cutting Diameter : 0.3701 (9.40 Mm). Oal - Overall Length: 89.00 Mm. Zeff - Eff. Teeth: 2. Dcon - Shank Diameter : 10.00 Mm. Csp - Coolant: No. Pl - Point Length: 1.50 Mm. Lu - Usable Length: 35.00 Mm. Ls - Shank Length: 40.00 Mm. Sig - Point Angle: 140. Uldr - Usable Length Diameter Ratio: 3Ã?. Lcf - Chip Flute Length: 47.00 Mm.

  • 03-12mm
  • Cylindrical Shank (Metric)
  • 140 Degree Included Point
  • 30 Degree Axial Rake
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
6154771
Cutter Diameter
0.3701" (9.40mm)
Overall Length
89 mm
Tool Coating
TiAlN
Grade
IN2005
Coolant Through
No
