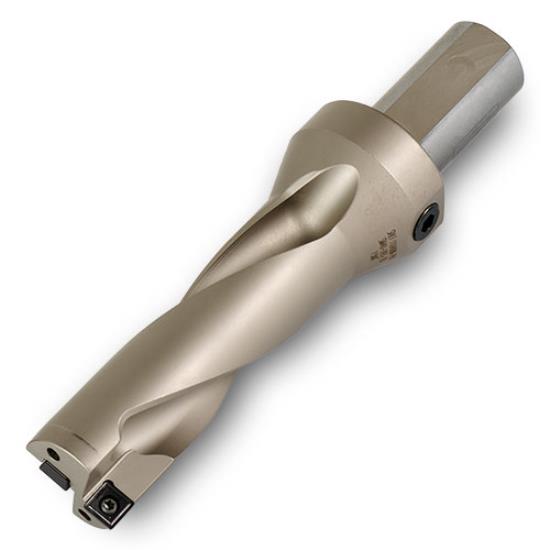

1.437" (36.50mm) Diameter QF0365110N6R01 QuadDrill+ FlatBottom Body
This item is not available for shipping OR sale for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR.
6181087
6181087
QF0365110N6R01
QF0365110N6R01
Weight: 2.8 LBS
Brand: INGERSOLL CUTTING TOOLS
Product Description

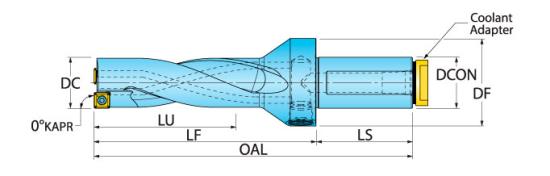

Qf0365110n6r01 Quaddrill+ Flatbottom Body Iso Item #Qf0365110n6r01 Ingersoll Part #6181087 Dc - Cutting Diameter : 1.437 (36.50 Mm). Oal - Overall Length: 8.54. Zeff - Eff. Teeth: 1. Dcon - Shank Diameter : 1.2500. Lu - Usable Length: 4.31. Lf - Functional Length: 6.180. Ls - Shank Length: 2.36. Znf - Face Insert Count: 2. Df - Flange Diameter : 1.77. Uldr - Usable Length Diameter Ratio: 3Ã?. Dc - Cutting Dia.: 1.437 (36.50 Mm). Oal - Overall Length: 8.54. Zeff - Eff. Teeth: 1. Dcon - Shank Dia.: 1.2500. Lu - Usable Length: 4.31. Lf - Functional Length: 6.180. Ls - Shank Length: 2.36. Znf - Face Insert Count: 2. Df - Flange Dia.: 1.77. Uldr - Usable Length Dia. Ratio: 3Ã?.
- 0.626--2.000"
- Universal Shank
- Square Inserts
- 0.626-2.000"
- Universal Shank
- Square Inserts
- Eccentric Sleeve
- Used to enlarge or reduce nominal drill diameters
- Note: The pin, or allen wrench, required to facilitate radial adjustment of the sleeve is not included
Shipping & Delivery Options
Illinois
Suncoast Shipping Deals
| Min. order amount |
Shipping Option |
Special Rate |
Max Weight |
|
$50.00
|
UPS Blue 2 Business Days |
$19.99 |
5 LBS |
| Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout. |
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Additional Product Details
Technical Details
- Manufacturer
- INGERSOLL CUTTING TOOLS
- Manufacturer Part Number
- 6181087
- Cutter Diameter
- 1.437" (36.50mm)
- Overall Length
- 8.54"
