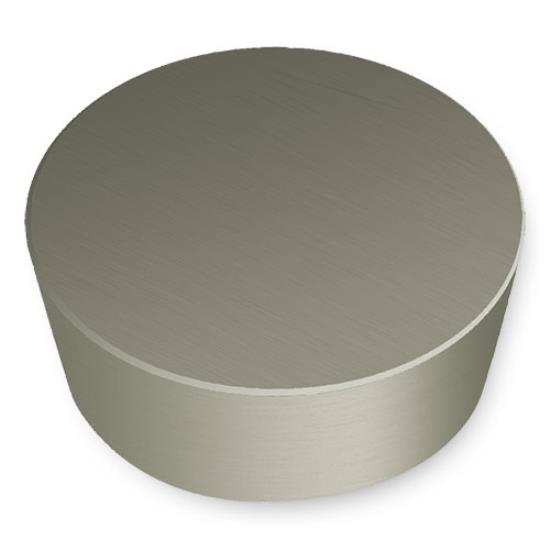

RPG43T6 / RPGN120400T6 Grade TC3020 Ceramic Positive Turning Insert Without Hole, Uncoated with Flat Top for General Turning HRSA

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
RPG43T6 / RPGN120400T6 Grade TC3020 Ceramic Positive Turning Insert Without Hole, Uncoated with Flat Top for General Turning HRSA RPG43T6 / RPGN120400T6 Grade TC3020 Ceramic Positive Turning Insert Without Hole, Uncoated with Flat Top for General Turning HRSA RPG43T6 / RPGN120400T6 Grade TC3020 Ceramic Positive Turning Insert Without Hole, Uncoated with Flat Top for General Turning HRSA RPG43T6 / RPGN120400T6 Grade TC3020 Ceramic Positive Turning Insert Without Hole, Uncoated with Flat Top for General Turning HRSA
INGERSOLL CUTTING TOOLS
6182046
6182046
RPGN120400T6 TC3020
RPG43T6 TC3020
Weight: 0.007 LBS
Brand: INGERSOLL CUTTING TOOLS
$40.30
(47% off)
$21.36
each
7/31/2026
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Ingersoll Rpg43t6 / Rpgn120400t6 Brings Ceramic Hot Hardness And Wear Resistance To Hrsa. The Grade Tc3020 Substrate Is Sialon Ceramic, Selected For Superior Wear Resistance From High Chemical Stability, Strong Flank And Notch Wear Resistance, And Excellent High-Temperature Strength. This Round Positive Insert Is Supplied As A Positive Turning Insert Without Hole With Uncoated Finish And No Chipbreaker Designation. Key Dimensions Include 0.500" Ic, 0.187" Thickness, 0.250" Corner Radius, Round Included Angle. The Insert Uses Chamfer, Hone Edge Preparation To Support Cutting Edge Strength. Recommended Workpiece Materials Include Hrsa. Iso Application Range: S15-S25. Superior Wear Resistance From High Chemical Stability, Strong Flank And Notch Wear Resistance, And Excellent High-Temperature Strength. Ingersoll Positions Tc3020 For Superalloy Work Where Wear Resistance, Chemical Stability, Flank Wear Control And Notch Wear Resistance Are Important, With Typical Turning Data Around 650-1150 Sfm And .004-.016 Ipr In Super Alloys. Use With A Compatible Ingersoll Holder Or Boring Bar In A Rigid Setup With Proper Speed, Feed And Edge Preparation For Best Ceramic Insert Performance. Ingersoll Part # 6182046

  • RPG43T6 / RPGN120400T6 RPG positive turning insert
  • Grade TC3020 ceramic; SiAlON ceramic; Uncoated Finish
  • Sialon ceramic grade for high-temperature alloy turning with strong wear and notch resistance
  • No chipbreaker designation
  • round positive geometry; 0.500" IC; 0.187" thick; 0.250" corner radius; Round included angle
  • ISO range S15-S25
  • Chamfer, Hone edge preparation
  • Built for wear resistance, flank wear control and notch wear resistance in high-temperature alloy machining
  • Use with compatible Ingersoll holder or boring bar
  • Recommended for ISO S15-S25; heat-resistant super alloys (HRSA)
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
6182046
ISO Part Number
RPGN120400T6
ANSI Part Number
RPG43T6
Radius Size
0.250"
Thickness
0.187"
Material
HRSA
Tool Coating
Uncoated
Tool Substrate Material
Ceramic
Primary Application
General Turning
Angle Per Side
11°
Hand
Neutral
Edge Preparation
Chamfer, Hone
Included Angle
Round
Material Food Group
S15-S25
Grade
TC3020
Series
RPG
Style
Without Hole
Model
ISO Turn
Size
43
Type
Positive Turning Insert
Inscribed Circle
0.500"
Chip Breaker
No
