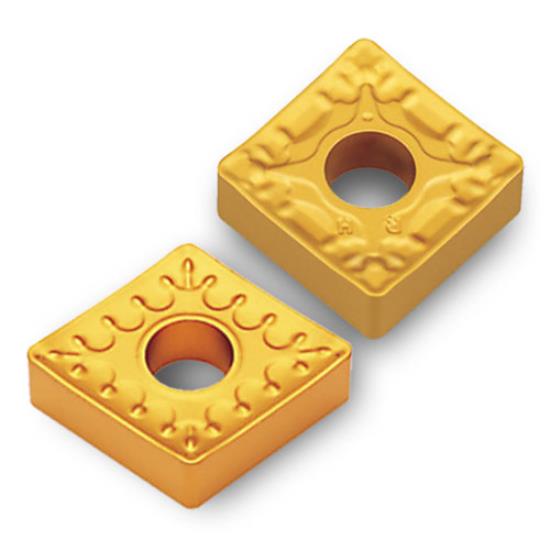

CNMM433RH / CNMM120412RH Grade TT8125B Carbide Negative Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with RH Chipbreaker for Semi-Heavy Rough Turning Steel

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
CNMM433RH / CNMM120412RH Grade TT8125B Carbide Negative Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with RH Chipbreaker for Semi-Heavy Rough Turning Steel CNMM433RH / CNMM120412RH Grade TT8125B Carbide Negative Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with RH Chipbreaker for Semi-Heavy Rough Turning Steel CNMM433RH / CNMM120412RH Grade TT8125B Carbide Negative Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with RH Chipbreaker for Semi-Heavy Rough Turning Steel CNMM433RH / CNMM120412RH Grade TT8125B Carbide Negative Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with RH Chipbreaker for Semi-Heavy Rough Turning Steel
INGERSOLL CUTTING TOOLS
6212404
6212404
CNMM120412RH TT8125B
CNMM433RH TT8125B
Weight: 0.023 LBS
Brand: INGERSOLL CUTTING TOOLS
$20.00
(47% off)
$10.60
each
7/31/2026
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Ingersoll Cnmm433rh / Cnmm120412rh Is A Negative Turning Insert With Hole From The Iso Turn Turning Insert Line. This Cnmm Insert Is Manufactured In Grade Tt8125b Carbide Using Tin+Ticn+Al2o3+Tin Coated Finish And The Rh Chipbreaker For Semi-Heavy Rough Turning. It Provides 2 Indexable Cutting Corners In An 80° Rhombic Geometry. Key Dimensions Include 0.047" Corner Radius, 0.500" Inscribed Circle, 0.187" Thickness. Recommended Workpiece Materials Include Steel. Tt8125b/Tt8125 Is A General-Purpose Cvd Carbide Steel Grade With A Balanced Combination Of Toughness And Wear Resistance. Iso Range P15-P30. The Rh Chipbreaker Is Configured For Semi-Heavy Rough Turning With Chip Control And Edge Strength Matched To The Selected Grade. This Is A Standard Iso-Format Turning Insert For Use In Compatible External Turning Holders And Boring Bars. Use This Insert With A Compatible Ingersoll Holder Or Boring Bar For Production Turning, Facing, Profiling Or Boring Operations Where Dependable Chip Control, Repeatable Indexing And Consistent Surface Finish Are Important. Ingersoll Part # 6212404

  • CNMM433RH / CNMM120412RH CNMM negative turning insert with hole
  • 2 indexable cutting corners; 80° rhombic geometry; 0.047" corner radius, 0.500" IC, 0.187" thick
  • Grade TT8125B carbide with TiN+TiCN+Al2O3+TiN coated finish
  • RH chipbreaker for Semi-Heavy Rough Turning
  • This is a standard ISO-format turning insert for use in compatible external turning holders and boring bars
  • Recommended for ISO P15-P30; steel
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
6212404
ISO Part Number
CNMM120412RH
ANSI Part Number
CNMM433RH
Radius Size
0.047"
Thickness
0.187"
Material
Steel
Tool Coating
TiN+TiCN+Al2O3+TiN
Tool Substrate Material
Carbide
Primary Application
Semi-Heavy Rough Turning
Hand
Neutral
Included Angle
80°
Material Food Group
P15-P30
Grade
TT8125B
Series
CNMM
Style
With Hole
Model
ISO Turn
Size
433
Type
Negative Turning Insert
Inscribed Circle
0.500"
Chip Breaker
RH
Number Of Points
2
