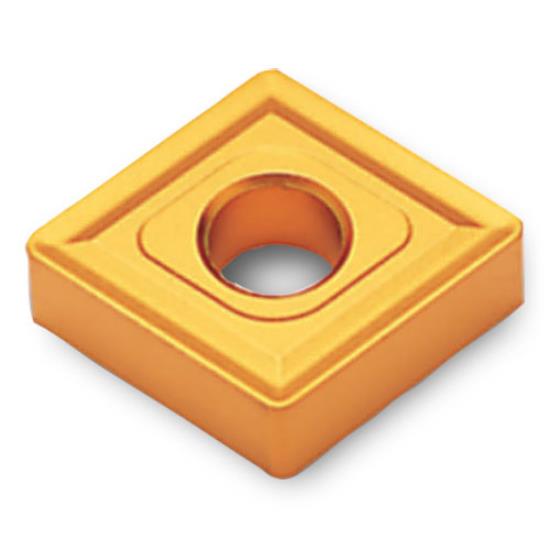

CNMG642/CNMG190608 TT8125B Turning Insert Carbide

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AR,AZ,CA,CO,DC,GA,HI,IA,ID,IL,IN,KS,KY,LA,MA,MD,ME,MI,MN,MO,MS,NC,ND,NE,NJ,NM,NV,NY,OH,OK,PA,PR,RI,SC,SD,TN,TX,UT,VA,VT,WA,WI,WV,WY before shipping to you.
CNMG642/CNMG190608 TT8125B Turning Insert Carbide CNMG642/CNMG190608 TT8125B Turning Insert Carbide
INGERSOLL CUTTING TOOLS
6212986
6212986
CNMG642 TT8125B
Weight: 0.2 LBS
Brand: INGERSOLL CUTTING TOOLS
$39.00
(46% off)
$21.01
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Cnmg642 Tt8125b Turning Insert Carbide Iso Item #Cnmg190608 Tt8125b Ingersoll Part #6212986 Re - Corner Radius: 0.031. Ih - Insert Hand: Neutral. Noi - Number Of Indexes: 4. S - Thickness: 0.250. L - Cutting Edge Length: 0.760. Ic - Inscribed Circle Diameter : 0.750. Epsr - Insert Included Angle: 80. Fn - Cutting Feed Min.: 0.0100. Fn - Cutting Feed Max.: 0.0240. Ap - Cutting Depth Min.: 0.118. Ap - Cutting Depth Max.: 0.315. Dxf File: . Step Light File: . Step Detailed File: . Re - Corner Radius: 0.031. Ih - Insert Hand: Neutral. Noi - Number Of Indexes: 4. S - Thickness: 0.250. L - Cutting Edge Length: 0.760. Ic - Inscribed Circle Dia.: 0.750. Epsr - Insert Included Angle: 80. Fn - Cutting Feed Min.: 0.0100. Fn - Cutting Feed Max.: 0.0240. Ap - Cutting Depth Min.: 0.118. Ap - Cutting Depth Max.: 0.315.

  • Negative 80 Degree rhombic inserts with common-type chipbreaker
  • For medium applications
  • Negative 80deg rhombic inserts with common-type chipbreaker
  • For medium applications
  • C-Adapter (ISO 26623-1)
  • Negative 80deg CN_G/CN_M/CN_A Inserts
  • -5deg Lead, Multidirectional Clamp
  • C4-C6
  • Coolant Thru
  • Negative 80deg CN_G/CN_M/CN_A Inserts
  • -5deg Lead, Lock Pin Clamp
  • .625-1.250" Shank
  • Negative 80deg CN_G/CN_M/CN_A Inserts
  • -5deg Lead, Lock Pin Clamp
  • .750-2.500" Shank
  • Negative 80deg CN_G/CN_M/CN_A Inserts
  • -5deg Lead, Multidirectional Clamp
  • .750-1.500" Shank
  • Negative 80deg CN_G/CN_M/CN_A Inserts
  • Neutral Lead, Multidirectional Clamp
  • .750-1.250" Shank
Shipping & Delivery Options
ILLINOIS TO FLORIDA (3-4 BUSINESS DAY DELAY)
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$75.00 Economy (7 - 10 days)** $0.00 5 LBS
No Minimum Economy (7 - 10 days)** $5.50 1 LBS
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory Stock
30
Add to Cart

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
6212986
ISO Part Number
CNMG190608
ANSI Part Number
CNMG642
Hand
Neutral
Grade
TT8125B
Inscribed Circle
0.7500"
