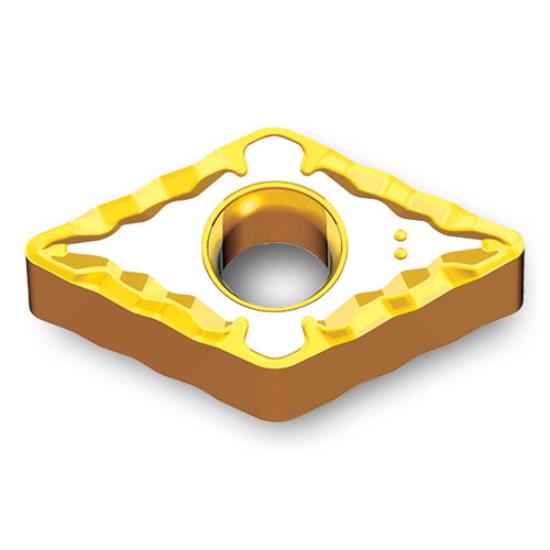

DNMG3.53.52FT / DNMG130508FT Grade TT8105B Carbide Negative Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with FT Chipbreaker for Semi-Finish to Medium Turning Steel

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
DNMG3.53.52FT / DNMG130508FT Grade TT8105B Carbide Negative Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with FT Chipbreaker for Semi-Finish to Medium Turning Steel DNMG3.53.52FT / DNMG130508FT Grade TT8105B Carbide Negative Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with FT Chipbreaker for Semi-Finish to Medium Turning Steel
INGERSOLL CUTTING TOOLS
6213003
6213003
DNMG130508FT TT8105B
DNMG3.53.52FT TT8105B
Weight: 0.026 LBS
Brand: INGERSOLL CUTTING TOOLS
$24.55
(47% off)
$13.01
each
7/31/2026
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Ingersoll Dnmg3.53.52Ft / Dnmg130508ft Gives Machinists A Compact Rhino-Style Negative Turning Insert With Hole In The Dnmg Series. This Rhino-Family Insert Is Built Around A Compact Smaller-Ic Body With The Same Or Similar Thickness As Larger Iso Styles, So It Delivers Rhino-Tough Durability Without Paying For Excess Insert Size. It Is An Economical Alternative To Larger Standard Iso Inserts For Many Turning, Facing And Profiling Jobs. This Dnmg Insert Is Made In Grade Tt8105b Carbide Using Tin+Ticn+Al2o3+Tin Coated Finish And The Ft Chipbreaker For Semi-Finish To Medium Turning. It Provides 4 Usable Cutting Edges In A 55° Rhombic Geometry. Key Dimensions Include 0.438" Ic, 0.219" Thickness, 0.031" Corner Radius. Recommended Workpiece Materials Include Steel. Tt8105b Is A High-Wear Cvd Carbide Steel Grade For High-Speed Continuous Turning With Strong Crater And Flank Wear Resistance. Iso Application Range P05-P15. The Ft Chipbreaker Is Configured For Semi-Finish To Medium Turning, With Chip Control And Edge Strength Matched To The Selected Grade. Use With The Correct Ingersoll Holder Or Boring Bar For Stable Seating, Repeatable Indexing, Dependable Chip Control And Consistent Surface Finish. Ingersoll Part # 6213003

  • DNMG3.53.52FT / DNMG130508FT DNMG negative turning insert with hole
  • Compact Gold-Rhino/RhinoTurn size technology built for full-strength turning performance
  • Rhino-tough compact insert body for stable cutting in compatible holders
  • 4 usable cutting edges; 55° rhombic geometry; 0.438" IC; 0.219" thick; 0.031" corner radius
  • Grade TT8105B carbide with TiN+TiCN+Al2O3+TiN coated finish
  • FT chipbreaker for Semi-Finish to Medium Turning
  • Recommended for ISO P05-P15; steel
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
6213003
ISO Part Number
DNMG130508FT
ANSI Part Number
DNMG3.53.52FT
Radius Size
0.031"
Thickness
0.219"
Material
Steel
Tool Coating
TiN+TiCN+Al2O3+TiN
Tool Substrate Material
Carbide
Primary Application
Semi-Finish to Medium Turning
Hand
Neutral
Included Angle
55°
Material Food Group
P05-P15
Grade
TT8105B
Series
DNMG
Style
With Hole
Model
Gold Rhino ISO
Size
3.53.52
Type
Negative Turning Insert
Inscribed Circle
0.438"
Chip Breaker
FT
Number Of Points
4
