SNMX554HB / SNMX150716HB Grade TT8115B Carbide Negative Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with HB Chipbreaker for Medium to Rough Turning Steel

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
SNMX554HB / SNMX150716HB Grade TT8115B Carbide Negative Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with HB Chipbreaker for Medium to Rough Turning Steel SNMX554HB / SNMX150716HB Grade TT8115B Carbide Negative Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with HB Chipbreaker for Medium to Rough Turning Steel
INGERSOLL CUTTING TOOLS
6213106
6213106
SNMX150716HB TT8115B
SNMX554HB TT8115B
Weight: 0.048 LBS
Brand: INGERSOLL CUTTING TOOLS
$32.95
(47% off)
$17.46
each
7/31/2026
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Ingersoll Snmx554hb / Snmx150716hb Is A Negative Turning Insert With Hole From The Gold Duty Hb Turning Insert Line. This Snmx Insert Is Manufactured In Grade Tt8115b Carbide Using Tin+Ticn+Al2o3+Tin Coated Finish And The Hb Chipbreaker For Medium To Rough Turning. It Provides 8 Indexable Cutting Corners In A 90° Square Geometry. Key Dimensions Include 0.063" Corner Radius, 0.625" Inscribed Circle, 0.272" Thickness. Recommended Workpiece Materials Include Steel. Tt8115b/Tt8115 Is A Cvd Carbide Steel Grade For Higher Cutting Speeds And Continuous To Light Interrupted Cuts, Balancing Wear Resistance And Heat Resistance. Iso Range P05-P20. Hb Is A Semi-Heavy Turning Chipbreaker With Added Edge Strength For Stronger Roughing Cuts. Goldduty Hb Geometry Provides Additional Edge Strength For Semi-Heavy Turning And Rougher Production Cuts. Use This Insert With A Compatible Ingersoll Holder Or Boring Bar For Production Turning, Facing, Profiling Or Boring Operations Where Dependable Chip Control, Repeatable Indexing And Consistent Surface Finish Are Important. Ingersoll Part # 6213106

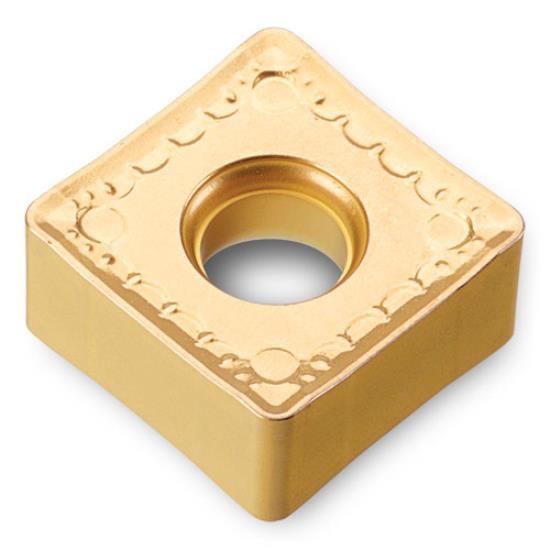

  • SNMX554HB / SNMX150716HB SNMX negative turning insert with hole
  • 8 indexable cutting corners; 90° square geometry; 0.063" corner radius, 0.625" IC, 0.272" thick
  • Grade TT8115B carbide with TiN+TiCN+Al2O3+TiN coated finish
  • HB chipbreaker for Medium to Rough Turning
  • GoldDuty HB geometry provides additional edge strength for semi-heavy turning and rougher production cuts
  • Recommended for ISO P05-P20; steel
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
6213106
ISO Part Number
SNMX150716HB
ANSI Part Number
SNMX554HB
Radius Size
0.063"
Thickness
0.272"
Material
Steel
Tool Coating
TiN+TiCN+Al2O3+TiN
Tool Substrate Material
Carbide
Primary Application
Medium to Rough Turning
Hand
Neutral
Included Angle
90°
Material Food Group
P05-P20
Grade
TT8115B
Series
SNMX
Style
With Hole
Model
Gold Duty HB
Size
554
Type
Negative Turning Insert
Inscribed Circle
0.625"
Chip Breaker
HB
Number Of Points
8
