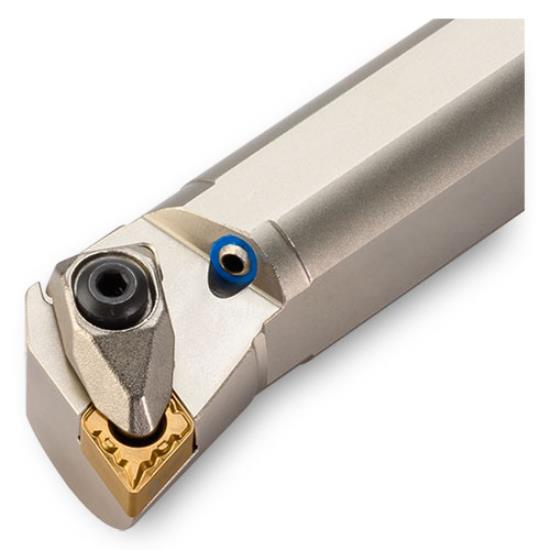

A16t-Txqnr-3.5 Rhinoturnx Boring Bar Iso Item #A16t-Txqnr-3.5 Ingersoll Part #6213229 Csp - Coolant: Yes. Kapr - Cutting Edge Angle: 100.0. Lf - Functional Length: 12.0. H - Shank Height: 0.920. Hand - Hand: Right. Wf - Functional Width: 0.677. Dmin - Min. Bore Diameter : 1.250. Bmc - Body Material Code: Steel. Dcon - Shank Diameter : 1.000. Ldred - Reduced Body Diameter Length: 1.32. Csp - Coolant: Yes. Kapr - Cutting Edge Angle: 100.0. Lf - Functional Length: 12.0. H - Shank Height: 0.920. Hand - Hand: Right. Dxf File: . Step Light File: . Step Detailed File: . Wf - Functional Width: 0.677. Dmin - Min. Bore Dia.: 1.250. Bmc - Body Material Code: Steel. Ldred - Reduced Body Dia. Length: 1.32. Dcon - Shank Dia.: 1.000. Miid - Master Insert Identification: Xnmg110508mlp.

• T-type-boring bar for internal turning
• Accepts negative 70 Degree rhombic inserts
• Coolant thru
• Negative 70deg XN_G-1105 Inserts
• -10deg Lead, Multidirectional Clamp
• 1.000-1.250" Shank
• Coolant Thru
• Negative 70deg rhombic inserts
• For finishing general applications
• Negative 70deg rhombic inserts
• For semi-finishing to medium applications
• Negative 70deg rhombic inserts
• For semi-finishing to medium applications
• Reduction Sleeve
• For use in holders with exchangeable adaption
• -B indicates non-threaded access hole
• C-type sleeves
