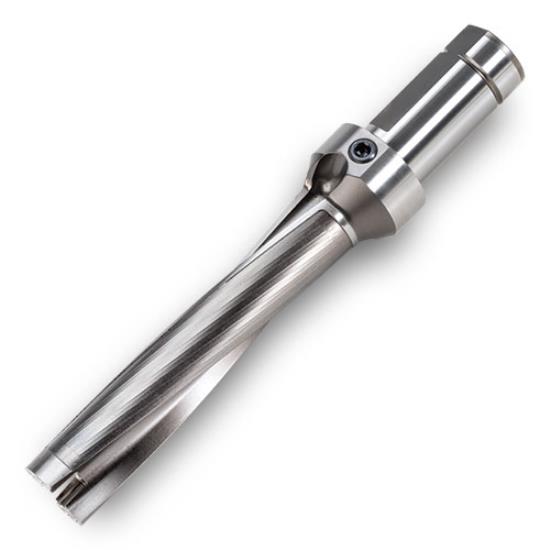

W0318YHSA131/W0318YHSA131 GoldTwin Modular Body
This item is not available for shipping OR sale for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR.
6214148
6214148
W0318YHSA131
W0318YHSA131
Weight: 3.263 LBS
Brand: INGERSOLL CUTTING TOOLS
Product Description
W0318yhsa131/W0318yhsa131 Goldtwin Modular Body Dcon - Shank Dia.: 1.25. Lu - Usable Length: 5.16. Lf - Functional Length: 7.22. Ls - Shank Length: 3.16. Df - Flange Dia.: 2.17. Ccws - Connection Code Workpiece Side: Yh (12.0). Uldr - Usable Length Dia. Ratio: 5Ã?.
- 01.062-1.875" Diameter Range
- Modular Design
- Universal Flat Shank
- Extended Length Shank for Maximum Clamping Surface
- Side Port Coolant Access
- Coolant Thru
- 01.062-1.875" Diameter Range
- 2-Effective Modular Head
- Self-Centering Geometry for Improved Straightness
- SPGX-WG Wiper Insert for Quality Surface Finish
- Guide Pads Improve Stability
- Eccentric Sleeve
- Used to enlarge or reduce nominal drill diameters
- Note: The pin, or allen wrench, required to facilitate radial adjustment of the sleeve is not included
Shipping & Delivery Options
Illinois
Suncoast Shipping Deals
| Min. order amount |
Shipping Option |
Special Rate |
Max Weight |
|
$50.00
|
UPS Blue 2 Business Days |
$19.99 |
5 LBS |
| Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout. |
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Additional Product Details
Technical Details
- Manufacturer
- INGERSOLL CUTTING TOOLS
- Manufacturer Part Number
- 6214148
- ISO Part Number
- W0318YHSA131
- ANSI Part Number
- W0318YHSA131
