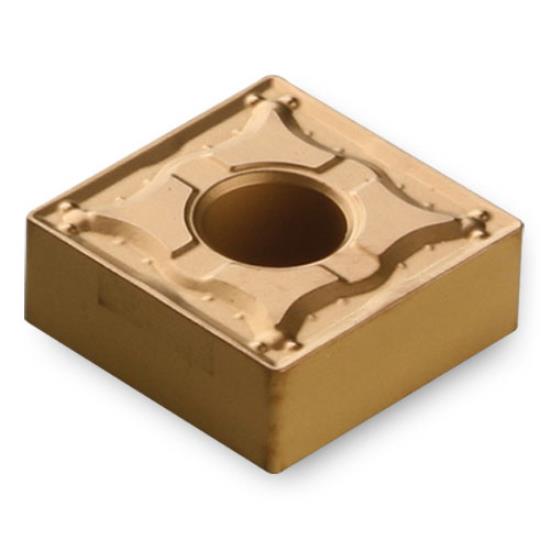

SNMG432PC / SNMG120408PC Grade TT8125B Carbide Negative Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with PC Chipbreaker for Semi-Finish to Medium Turning Steel

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
SNMG432PC / SNMG120408PC Grade TT8125B Carbide Negative Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with PC Chipbreaker for Semi-Finish to Medium Turning Steel SNMG432PC / SNMG120408PC Grade TT8125B Carbide Negative Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with PC Chipbreaker for Semi-Finish to Medium Turning Steel
INGERSOLL CUTTING TOOLS
6236546
6236546
SNMG120408PC TT8125B
SNMG432PC TT8125B
Weight: 0.027 LBS
Brand: INGERSOLL CUTTING TOOLS
$19.15
(47% off)
$10.15
each
7/31/2026
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Ingersoll Snmg432pc / Snmg120408pc Is A Negative Turning Insert With Hole From The Iso Turn Turning Insert Line. This Snmg Insert Is Manufactured In Grade Tt8125b Carbide Using Tin+Ticn+Al2o3+Tin Coated Finish And The Pc Chipbreaker For Semi-Finish To Medium Turning. It Provides 8 Indexable Cutting Corners In A 90° Square Geometry. Key Dimensions Include 0.031" Corner Radius, 0.500" Inscribed Circle, 0.187" Thickness. Recommended Workpiece Materials Include Steel. Tt8125b/Tt8125 Is A General-Purpose Cvd Carbide Steel Grade With A Balanced Combination Of Toughness And Wear Resistance. Iso Range P15-P30. Pc Is A Positive-Geometry Chipbreaker For Medium To Semi-Finishing Operations, Especially Steel And Automotive Components. This Is A Standard Iso-Format Turning Insert For Use In Compatible External Turning Holders And Boring Bars. Use This Insert With A Compatible Ingersoll Holder Or Boring Bar For Production Turning, Facing, Profiling Or Boring Operations Where Dependable Chip Control, Repeatable Indexing And Consistent Surface Finish Are Important. Ingersoll Part # 6236546

  • SNMG432PC / SNMG120408PC SNMG negative turning insert with hole
  • 8 indexable cutting corners; 90° square geometry; 0.031" corner radius, 0.500" IC, 0.187" thick
  • Grade TT8125B carbide with TiN+TiCN+Al2O3+TiN coated finish
  • PC chipbreaker for Semi-Finish to Medium Turning
  • This is a standard ISO-format turning insert for use in compatible external turning holders and boring bars
  • Recommended for ISO P15-P30; steel
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory Stock
10
Add to Cart

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
6236546
ISO Part Number
SNMG120408PC
ANSI Part Number
SNMG432PC
Radius Size
0.031"
Thickness
0.187"
Material
Steel
Tool Coating
TiN+TiCN+Al2O3+TiN
Tool Substrate Material
Carbide
Primary Application
Semi-Finish to Medium Turning
Hand
Neutral
Included Angle
90°
Material Food Group
P15-P30
Grade
TT8125B
Series
SNMG
Style
With Hole
Model
ISO Turn
Size
432
Type
Negative Turning Insert
Inscribed Circle
0.500"
Chip Breaker
PC
Number Of Points
8
