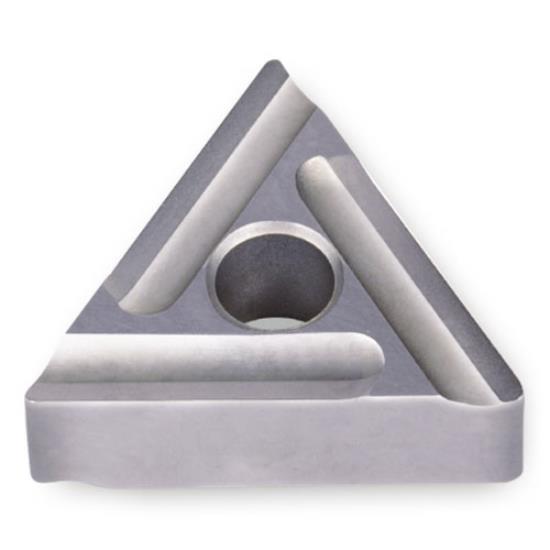

TNMG332R-FS / TNMG160408R-FS Grade TT8115B Carbide Right Hand Negative Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with FS Chipbreaker for Super Finish Turning Steel

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
TNMG332R-FS / TNMG160408R-FS Grade TT8115B Carbide Right Hand Negative Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with FS Chipbreaker for Super Finish Turning Steel TNMG332R-FS / TNMG160408R-FS Grade TT8115B Carbide Right Hand Negative Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with FS Chipbreaker for Super Finish Turning Steel
INGERSOLL CUTTING TOOLS
6241094
6241094
TNMG160408R-FS TT8115B
TNMG332R-FS TT8115B
Weight: 0.019 LBS
Brand: INGERSOLL CUTTING TOOLS
$16.35
(47% off)
$8.67
each
7/31/2026
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Ingersoll Tnmg332r-Fs / Tnmg160408r-Fs Is A Right Hand Negative Turning Insert With Hole From The Iso Turn Turning Insert Line. This Tnmg Insert Is Manufactured In Grade Tt8115b Carbide Using Tin+Ticn+Al2o3+Tin Coated Finish And The Fs Chipbreaker For Super Finish Turning. It Provides 6 Indexable Cutting Corners In A 60° Triangular Geometry. Key Dimensions Include 0.031" Corner Radius, 0.375" Inscribed Circle, 0.187" Thickness. Recommended Workpiece Materials Include Steel. Tt8115b/Tt8115 Is A Cvd Carbide Steel Grade For Higher Cutting Speeds And Continuous To Light Interrupted Cuts, Balancing Wear Resistance And Heat Resistance. Iso Range P05-P20. Fs Is A Fine-Finishing Chipbreaker For Low Feed And Shallow Depth Conditions, Helping Prevent Tangled Chips And Improve Surface Finish. This Is A Standard Iso-Format Turning Insert For Use In Compatible External Turning Holders And Boring Bars. Use This Insert With A Compatible Ingersoll Holder Or Boring Bar For Production Turning, Facing, Profiling Or Boring Operations Where Dependable Chip Control, Repeatable Indexing And Consistent Surface Finish Are Important. Ingersoll Part # 6241094

  • TNMG332R-FS / TNMG160408R-FS TNMG negative turning insert with hole
  • 6 indexable cutting corners; 60° triangular geometry; 0.031" corner radius, 0.375" IC, 0.187" thick
  • Grade TT8115B carbide with TiN+TiCN+Al2O3+TiN coated finish
  • FS chipbreaker for Super Finish Turning
  • This is a standard ISO-format turning insert for use in compatible external turning holders and boring bars
  • Recommended for ISO P05-P20; steel
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
6241094
ISO Part Number
TNMG160408R-FS
ANSI Part Number
TNMG332R-FS
Radius Size
0.031"
Thickness
0.187"
Material
Steel
Tool Coating
TiN+TiCN+Al2O3+TiN
Tool Substrate Material
Carbide
Primary Application
Super Finish Turning
Hand
Right Hand
Included Angle
60°
Material Food Group
P05-P20
Grade
TT8115B
Series
TNMG
Style
With Hole
Model
ISO Turning Holder
Size
332
Type
Negative Turning Insert
Inscribed Circle
0.375"
Chip Breaker
FS
Number Of Points
6
