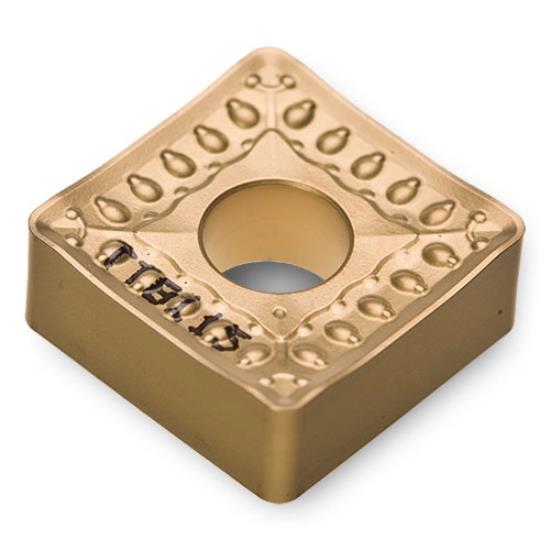

SNMM543RX / SNMM150612RX Grade TT8135B Carbide Negative Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with RX Chipbreaker for Semi-Heavy Rough Turning Steel

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
SNMM543RX / SNMM150612RX Grade TT8135B Carbide Negative Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with RX Chipbreaker for Semi-Heavy Rough Turning Steel SNMM543RX / SNMM150612RX Grade TT8135B Carbide Negative Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with RX Chipbreaker for Semi-Heavy Rough Turning Steel
INGERSOLL CUTTING TOOLS
6241958
6241958
SNMM150612RX TT8135B
SNMM543RX TT8135B
Weight: 0.046 LBS
Brand: INGERSOLL CUTTING TOOLS
$29.95
(47% off)
$15.87
each
7/31/2026
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Ingersoll Snmm543rx / Snmm150612rx Is A Negative Turning Insert With Hole From The Iso Turn Turning Insert Line. This Snmm Insert Is Manufactured In Grade Tt8135b Carbide Using Tin+Ticn+Al2o3+Tin Coated Finish And The Rx Chipbreaker For Semi-Heavy Rough Turning. It Provides 4 Indexable Cutting Corners In A 90° Square Geometry. Key Dimensions Include 0.047" Corner Radius, 0.625" Inscribed Circle, 0.250" Thickness. Recommended Workpiece Materials Include Steel. Tt8135b/Tt8135 Is A Tough Cvd Carbide Grade For Medium To Rough Steel Turning, Lower Cutting Speeds And Heavier Or Interrupted Cuts. Iso Range P25-P40. Rx Is A Roughing Chipbreaker For Large-Part Machining With Strong Edge Support. This Is A Standard Iso-Format Turning Insert For Use In Compatible External Turning Holders And Boring Bars. Use This Insert With A Compatible Ingersoll Holder Or Boring Bar For Production Turning, Facing, Profiling Or Boring Operations Where Dependable Chip Control, Repeatable Indexing And Consistent Surface Finish Are Important. Ingersoll Part # 6241958

  • SNMM543RX / SNMM150612RX SNMM negative turning insert with hole
  • 4 indexable cutting corners; 90° square geometry; 0.047" corner radius, 0.625" IC, 0.250" thick
  • Grade TT8135B carbide with TiN+TiCN+Al2O3+TiN coated finish
  • RX chipbreaker for Semi-Heavy Rough Turning
  • This is a standard ISO-format turning insert for use in compatible external turning holders and boring bars
  • Recommended for ISO P25-P40; steel
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
6241958
ISO Part Number
SNMM150612RX
ANSI Part Number
SNMM543RX
Radius Size
0.047"
Thickness
0.250"
Material
Steel
Tool Coating
TiN+TiCN+Al2O3+TiN
Tool Substrate Material
Carbide
Primary Application
Semi-Heavy Rough Turning
Hand
Neutral
Included Angle
90°
Material Food Group
P25-P40
Grade
TT8135B
Series
SNMM
Style
With Hole
Model
ISO Turning Holder
Size
543
Type
Negative Turning Insert
Inscribed Circle
0.625"
Chip Breaker
RX
Number Of Points
4
