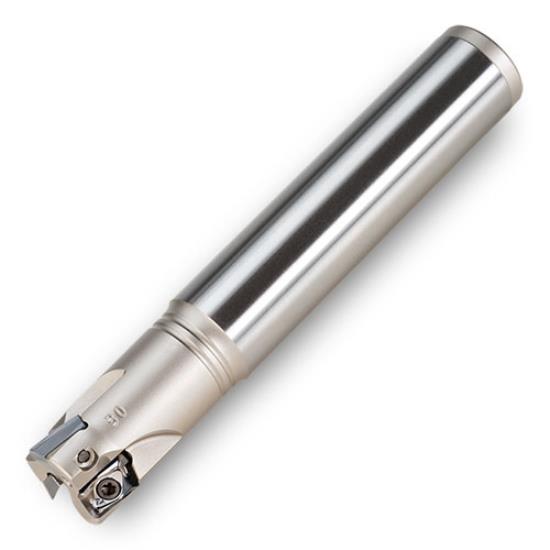

1VX1F-15020S9R01/1VX1F-15020S9R01 HiPosWinV End Mill
This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
6260389
6260389
1VX1F-15020S9R01
1VX1F-15020S9R01
Weight: 0.2 LBS
Brand: INGERSOLL CUTTING TOOLS
Product Description
1Vx1f-15020S9r01/1Vx1f-15020S9r01 Hiposwinv End Mill Dc - Cutting Dia.: 1.500. Apmx - Depth Of Cut Max.: 0.390. Oal - Overall Length: 9.00. Zeff - Eff. Teeth: 4. Dcon - Shank Dia.: 1.2500. Csp - Coolant: Yes. Kapr - Cutting Edge Angle: 90.0. Rpmx - Rpm Max.: 36000. Lux - Usable Length Max.: 2.00.
- 0.625-1.500"
- Cylindrical Shank
- 10 mm Insert with 2 indexes
- 90deg: .39" DOC
- 32-63 Ra surface finishes when engaging the wiper (WEP)
- Insert corners: .015" .031" & .062" R
- V-Bottom pocket fosters easy insert indexing & minimizes insert screw stress
- BT MAS-403
- Power Milling Chuck
- Chucking forces will be reduced by 25% when reduction sleeves are used
- Optional reduction sleeves sold separately
- C-Adapter (ISO 26623-1)
- Heavy Duty Hydraulic Milling Chuck
- Quick Change Holder
- Runout Accuracy <.00012"
- High Torque Transmission
- Recommended for chatter dampening when machining high temperature alloys such as titanium
- Chucking forces will be reduced by 25% when using sleeves
- Balanced G2.5@25,000 RPM
- *See Notes below
- C-Adapter (ISO 26623-1)
- Power Milling Chuck
- Quick Change Holder
- Chucking forces will be reduced by 25% when reduction sleeves are used
- Optional reduction sleeves sold separately
- CAT Face Contact
- Power Milling Chuck
- Chucking forces will be reduced by 25% when reduction sleeves are used
- Optional reduction sleeves sold separately
- CAT V-Flange
- Hydraulic Milling Chuck
- CAT40 Balanced G2.5@18,000 RPM
- CAT50 Balanced G2.5@12,000 RPM
- Runout Accuracy <.00012"
- Recommended for chatter dampening when machining high temperature alloys such as titanium
- Chucking forces will be reduced by 25% when using sleeves
- *See Notes below
- CAT V-Flange
- Power Milling Chuck
- Chucking forces will be reduced by 25% when reduction sleeves are used
- Optional reduction sleeves sold separately
- HSK-A (DIN 69893/A)
- Hydraulic Milling Chuck
- HSKA50-A63 balanced G2.5@25,000RPM
- HSKA100 balanced G2.5@18,000RPM
- Note: Chucking forces will be reduced by 25% when optional reduction sleeves are used
- *See additional notes below
- HSK-A (DIN 69893/A)
- Power Milling Chuck
- Chucking forces will be reduced by 25% when reduction sleeves are used
- Optional reduction sleeves sold separately
Shipping & Delivery Options
Illinois
Suncoast Shipping Deals
| Min. order amount |
Shipping Option |
Special Rate |
Max Weight |
|
$50.00
|
UPS Blue 2 Business Days |
$19.99 |
5 LBS |
| Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout. |
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Additional Product Details
Technical Details
- Manufacturer
- INGERSOLL CUTTING TOOLS
- Manufacturer Part Number
- 6260389
- ISO Part Number
- 1VX1F-15020S9R01
- ANSI Part Number
- 1VX1F-15020S9R01
