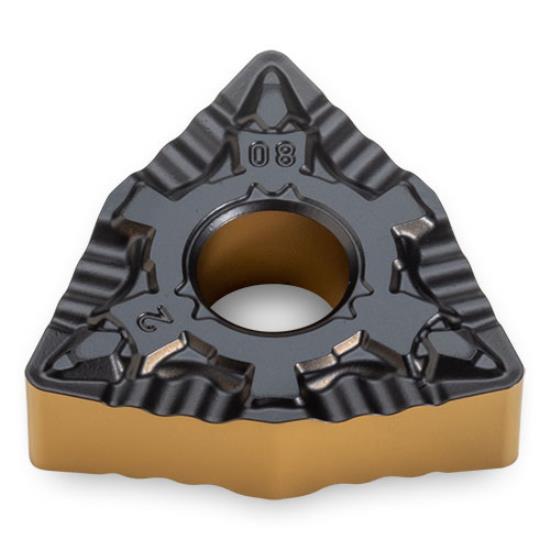

WNMG431MLP / WNMG080404MLP Grade TT5100 Carbide Negative Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with MLP Chipbreaker for Semi-Finish to Medium Turning Stainless, Steel, HRSA

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
WNMG431MLP / WNMG080404MLP Grade TT5100 Carbide Negative Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with MLP Chipbreaker for Semi-Finish to Medium Turning Stainless, Steel, HRSA WNMG431MLP / WNMG080404MLP Grade TT5100 Carbide Negative Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with MLP Chipbreaker for Semi-Finish to Medium Turning Stainless, Steel, HRSA
INGERSOLL CUTTING TOOLS
6267666
6267666
WNMG080404MLP TT5100
WNMG431MLP TT5100
Weight: 0.027 LBS
Brand: INGERSOLL CUTTING TOOLS
$21.95
(47% off)
$11.63
each
7/31/2026
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Ingersoll Wnmg431mlp / Wnmg080404mlp Is A Negative Turning Insert With Hole From The Iso Turn Turning Insert Line. This Wnmg Insert Is Manufactured In Grade Tt5100 Carbide Using Tin+Ticn+Al2o3+Tin Coated Finish And The Mlp Chipbreaker For Semi-Finish To Medium Turning. It Provides 6 Indexable Cutting Corners In An 80° Trigon Geometry. Key Dimensions Include 0.016" Corner Radius, 0.500" Inscribed Circle, 0.187" Thickness. Recommended Workpiece Materials Include Stainless Steel, Steel And Heat-Resistant Super Alloys (Hrsa). Tt5100 Is A Tough Cvd Carbide Grade For Mild Steel, Low Carbon Steel And Low Carbon Alloy Steel Where Sticking And Edge Chipping Can Be A Problem. Iso Range M15-M35, P20-P40, S15-S35. Mlp Is A Semi-Finishing To Medium Chipbreaker Designed For Stable Chip Control In Steel Turning. This Is A Standard Iso-Format Turning Insert For Use In Compatible External Turning Holders And Boring Bars. Use This Insert With A Compatible Ingersoll Holder Or Boring Bar For Production Turning, Facing, Profiling Or Boring Operations Where Dependable Chip Control, Repeatable Indexing And Consistent Surface Finish Are Important. Ingersoll Part # 6267666

  • WNMG431MLP / WNMG080404MLP WNMG negative turning insert with hole
  • 6 indexable cutting corners; 80° trigon geometry; 0.016" corner radius, 0.500" IC, 0.187" thick
  • Grade TT5100 carbide with TiN+TiCN+Al2O3+TiN coated finish
  • MLP chipbreaker for Semi-Finish to Medium Turning
  • This is a standard ISO-format turning insert for use in compatible external turning holders and boring bars
  • Recommended for ISO M15-M35, P20-P40, S15-S35; stainless steel, steel, and heat-resistant super alloys (HRSA)
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory Stock
30
Add to Cart

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
6267666
ISO Part Number
WNMG080404MLP
ANSI Part Number
WNMG431MLP
Radius Size
0.016"
Thickness
0.187"
Material
Stainless, Steel, HRSA
Tool Coating
TiN+TiCN+Al2O3+TiN
Tool Substrate Material
Carbide
Primary Application
Semi-Finish to Medium Turning
Hand
Neutral
Included Angle
80°
Material Food Group
M15-M35, P20-P40, S15-S35
Grade
TT5100
Series
WNMG
Style
With Hole
Model
ISO Turn
Size
431
Type
Negative Turning Insert
Inscribed Circle
0.500"
Chip Breaker
MLP
Number Of Points
6
