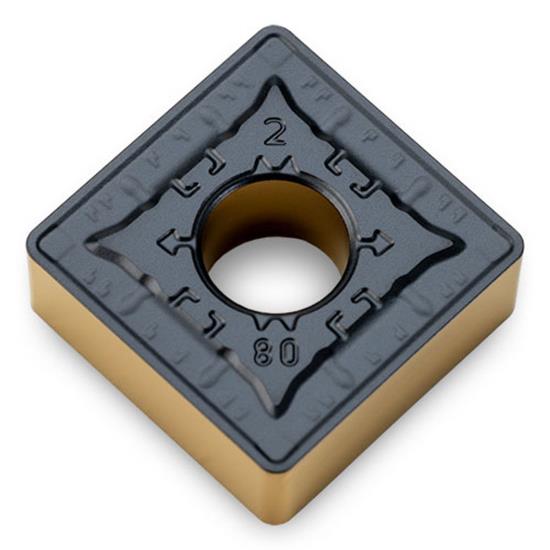

SNMG433RGP / SNMG120412RGP Grade TT8115B Carbide Negative Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with RGP Chipbreaker for Rough Turning Steel

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
SNMG433RGP / SNMG120412RGP Grade TT8115B Carbide Negative Turning Insert With Hole, TiN+TiCN+Al2O3+TiN Coated with RGP Chipbreaker for Rough Turning Steel
INGERSOLL CUTTING TOOLS
6271798
6271798
SNMG120412RGP TT8115B
SNMG433RGP TT8115B
Weight: 0.027 LBS
Brand: INGERSOLL CUTTING TOOLS
$19.15
(47% off)
$10.15
each
7/31/2026
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Ingersoll Snmg433rgp / Snmg120412rgp Is A Negative Turning Insert With Hole From The Iso Turn Turning Insert Line. This Snmg Insert Is Manufactured In Grade Tt8115b Carbide Using Tin+Ticn+Al2o3+Tin Coated Finish And The Rgp Chipbreaker For Rough Turning. It Provides 8 Indexable Cutting Corners In A 90° Square Geometry. Key Dimensions Include 0.047" Corner Radius, 0.500" Inscribed Circle, 0.187" Thickness. Recommended Workpiece Materials Include Steel. Tt8115b/Tt8115 Is A Cvd Carbide Steel Grade For Higher Cutting Speeds And Continuous To Light Interrupted Cuts, Balancing Wear Resistance And Heat Resistance. Iso Range P05-P20. Rgp Is A Steel Roughing Chipbreaker With A Reinforced Edge And Wide Chip Groove For Interrupted Machining. This Is A Standard Iso-Format Turning Insert For Use In Compatible External Turning Holders And Boring Bars. Use This Insert With A Compatible Ingersoll Holder Or Boring Bar For Production Turning, Facing, Profiling Or Boring Operations Where Dependable Chip Control, Repeatable Indexing And Consistent Surface Finish Are Important. Ingersoll Part # 6271798

  • SNMG433RGP / SNMG120412RGP SNMG negative turning insert with hole
  • 8 indexable cutting corners; 90° square geometry; 0.047" corner radius, 0.500" IC, 0.187" thick
  • Grade TT8115B carbide with TiN+TiCN+Al2O3+TiN coated finish
  • RGP chipbreaker for Rough Turning
  • This is a standard ISO-format turning insert for use in compatible external turning holders and boring bars
  • Recommended for ISO P05-P20; steel
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory Stock
30
Add to Cart

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
6271798
ISO Part Number
SNMG120412RGP
ANSI Part Number
SNMG433RGP
Radius Size
0.047"
Thickness
0.187"
Material
Steel
Tool Coating
TiN+TiCN+Al2O3+TiN
Tool Substrate Material
Carbide
Primary Application
Rough Turning
Hand
Neutral
Included Angle
90°
Material Food Group
P05-P20
Grade
TT8115B
Series
SNMG
Style
With Hole
Model
ISO Turn
Size
433
Type
Negative Turning Insert
Inscribed Circle
0.500"
Chip Breaker
RGP
Number Of Points
8
