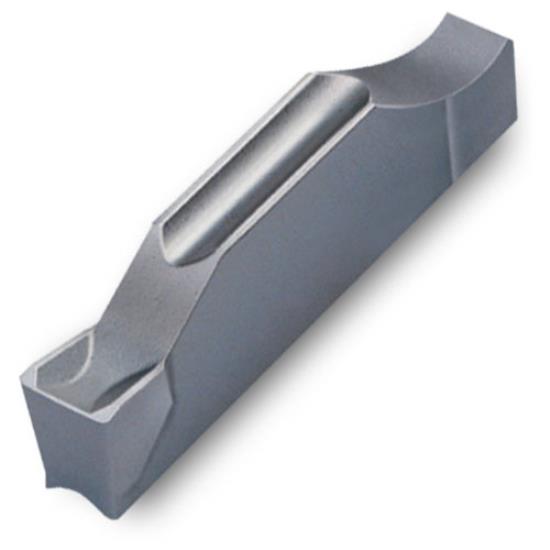

TSC4-4R TT8020 TClampUltra+ Insert

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
TSC4-4R TT8020 TClampUltra+ Insert TSC4-4R TT8020 TClampUltra+ Insert
INGERSOLL CUTTING TOOLS
6308770
6308770
TSC4-4R TT8020
TSC4-4R TT8020
Weight: 0.011 LBS
Brand: INGERSOLL CUTTING TOOLS
$25.30
(14% off)
$21.85
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Tsc4-4R Tt8020 Tclampultra+ Insert Iso Item #Tsc4-4R Tt8020 Ingersoll Part #6308770 Ssc - Insert Seat Size: 4. Wb - Body Width: 0.118. Daxin - Axial Groove I.D. Min.: 1.970. Dmin - Min. Bore Diameter : 1.968. Re - Corner Radius: 0.012. Ih - Insert Hand: Right. Noi - Number Of Indexes: 1. Cw - Cutting Width: 0.157. Feedgn - Grooving Feed Min.: 0.002. Feedgx - Grooving Feed Max.: 0.009. Insl - Insert Length: 0.790. S1 - Thickness: 0.185. An - Clearance Angle Major: 7. Psirr - Cutting Edge Angle Major Right Hand: 4.

  • Single End Inserts for Parting and Deep Grooving
  • C-type Chipbreakers
  • Not for lateral Turning
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory Stock
50
Add to Cart

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
6308770
Radius Size
0.012"
Tool Coating
TiCN
Hand
Right
Grade
TT8020
