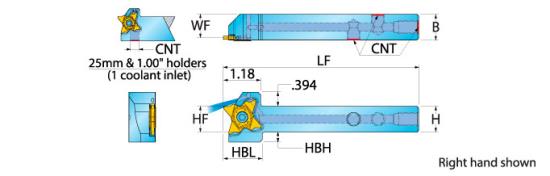

Tqhl25.4-34-Tb Tburst Holder Iso Item #Tqhl25.4-34-Tb Ingersoll Part #6341880 Lf - Functional Length: 5.50. Hf - Functional Height: 1.000. Hand - Hand: Left. H - Shank Height: 1.000. B - Shank Width: 1.000. Hbh - Head Bottom Offset Height: 0.118. Wf - Functional Width: 0.927. Hbl - Head Bottom Offset Length: 1.181. Cnt - Coolant Entry Thread Size: 1/8-27 Nptf. Lf - Functional Length: 5.50. Hf - Functional Height: 1.000. Hand - Hand: Left. H - Shank Height: 1.000. B - Shank Width: 1.000. Hbh - Head Bottom Offset Height: 0.118. Wf - Functional Width: 0.927. Hbl - Head Bottom Offset Length: 1.181. Cnt - Coolant Entry Thread Size: 1/8-27 Nptf.

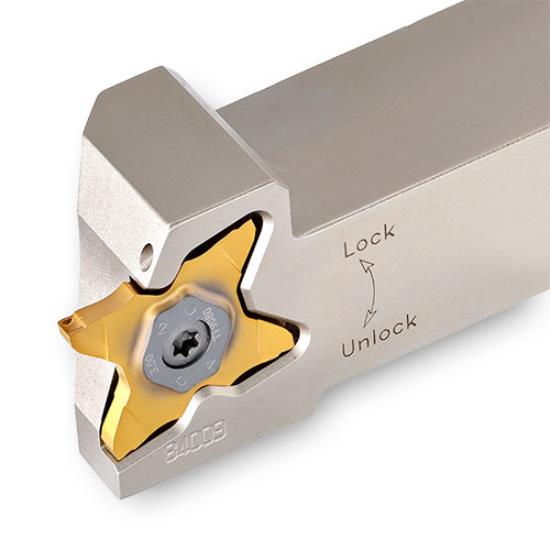

• Gold Flex integral tool holder for parting and grooving
• Inch holder
• High pressure coolant
• For Parting, Grooving, & Turning
• .750-1.000" Shank
• High Pressure Coolant
• Precision Four Corner Insert
• For Parting, Grooving, & Turning
• C-Type Chipbreaker
• C-Adapter (ISO 26623-1)
• Quick Change Holder for INCH External Square Shank Tools
• 1450 PSI Max
• High Pressure Coolant Elbow Fitting
• *See Notes Below
• High Pressure Coolant Straight Fitting Adapter
• *See Notes below
