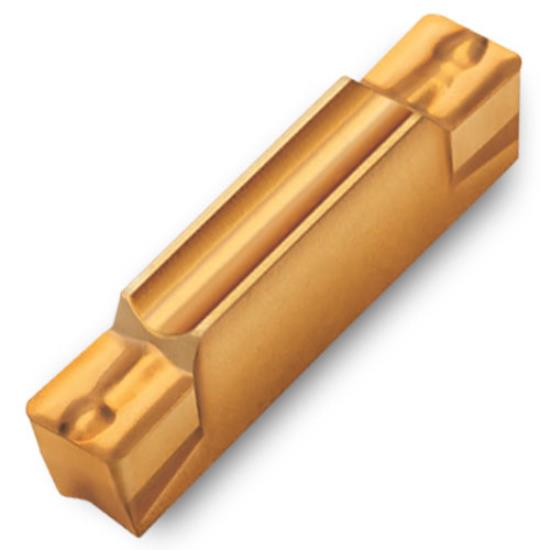

TDIT4.00E-0.40 TT5100 TClampUltra Insert
This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
6400667
6400667
TDIT4.00E-0.40 TT5100
TDIT4.00E-0.40 TT5100
Weight: 0.012 LBS
Brand: INGERSOLL CUTTING TOOLS
Product Description
Tdit4.00E-0.40 Tt5100 Tclampultra Insert Iso Item #Tdit4.00E-0.40 Tt5100 Ingersoll Part #6400667 Ssc - Insert Seat Size: 4. Daxin - Axial Groove I.D. Min.: 1.654. Dmin - Min. Bore Diameter : 0.827. Re - Corner Radius: 0.016. Ih - Insert Hand: Neutral. Noi - Number Of Indexes: 2. Cw - Cutting Width: 0.157. Feedgx - Grooving Feed Max.: 0.0071. Insl - Insert Length: 20.00 Mm. S1 - Thickness: 0.185. An - Clearance Angle Major: 14. Feedn - Turning Feed Min.: 0.007. Feedx - Turning Feed Max.: 0.012. Apmn - Turning Depth Of Cut Min.: 0.020. Apmx - Turning Depth Of Cut Max.: 0.094. Ssc - Insert Seat Size: 4. Daxin - Axial Groove I.D. Min.: 1.654. Cw - Cutting Width: 0.157. Dmin - Min. Bore Dia.: 0.827. Re - Corner Radius: 0.016. Noi - Number Of Indexes: 2. Feedgx - Grooving Feed Max.: 0.0071. Insl - Insert Length: 20.00 Mm. S1 - Thickness: 0.185. An - Clearance Angle Major: 14. Feedn - Turning Feed Min.: 0.007. Feedx - Turning Feed Max.: 0.012. Apmn - Turning Depth Of Cut Min.: 0.020. Apmx - Turning Depth Of Cut Max.: 0.094.
- Precision Inserts for Internal Turning, Grooving and Profiling
- T-type Chipbreakers
- Precision Double-Ended Insert
- For Internal Grooving & Turning
- T-Type Chipbreaker
- Deep Groove Depth
- For Internal Grooving
- T-Modular Connection
- 25-40 mm
- High Pressure Coolant
- Standard Groove Depth
- For Grooving & Turning
- Left Hand
- T-Clamp Modular Connection
- Deep Groove Depth
- For Grooving & Turning
- Left Hand
- T-Clamp Modular Connection
- Standard Groove Depth
- For Grooving & Turning
- Left Hand
- T-Clamp Modular Connection
- High Pressure Coolant
- Standard Groove Depth
- For Grooving & Turning
- Right Hand
- T-Clamp Modular Connection
- Deep Groove Depth
- For Grooving & Turning
- Right Hand
- T-Clamp Modular Connection
- Standard Groove Depth
- For Grooving & Turning
- Right Hand
- T-Clamp Modular Connection
- High Pressure Coolant
- Middle Tmax Adapters for external turning and grooving (left hand)
- Long Tmax adapters for external turning and grooving (left hand)
- Middle Tmax adapters for external turning and grooving (right hand)
- Long Tmax adapters for external turning and grooving (right hand)
- Shallow Groove Depth
- Perpendicular for Face Grooving & Turning
- 1.000-1.250" Shank
- Shallow Groove Depth
- For Precision Face Grooving & Turning
- .750-1.000" Shank
- Standard Groove Depth
- For Grooving & Turning
- 16 mm & .750-1.500" Shank
- Shallow Groove Depth
- For Grooving & Turning
- .625-1.000" Shank
- Deep Groove Depth
- For Grooving & Turning
- .625-1.250" Shank
- Standard Groove Depth
- For Grooving & Turning
- .750-1.000" Shank
- High Pressure Coolant
- Deep Groove Depth
- For Grooving & Turning
- 1.000" Shank
- High Pressure Coolant
- Standard Groove Depth
- For Grooving, Turning, & Profiling
- .750-1.500" Shank
- Coolant Thru
- Deep Groove Depth
- For Grooving, Turning, & Profiling
- 1.000-1.500" Shank
- Coolant Thru
Shipping & Delivery Options
Illinois
Suncoast Shipping Deals
| Min. order amount |
Shipping Option |
Special Rate |
Max Weight |
|
$50.00
|
UPS Blue 2 Business Days |
$19.99 |
5 LBS |
| Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout. |
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Additional Product Details
Technical Details
- Manufacturer
- INGERSOLL CUTTING TOOLS
- Manufacturer Part Number
- 6400667
- Radius Size
- 0.016"
- Tool Coating
- TiCN+Al2O3
- Hand
- Neutral
- Grade
- TT5100
