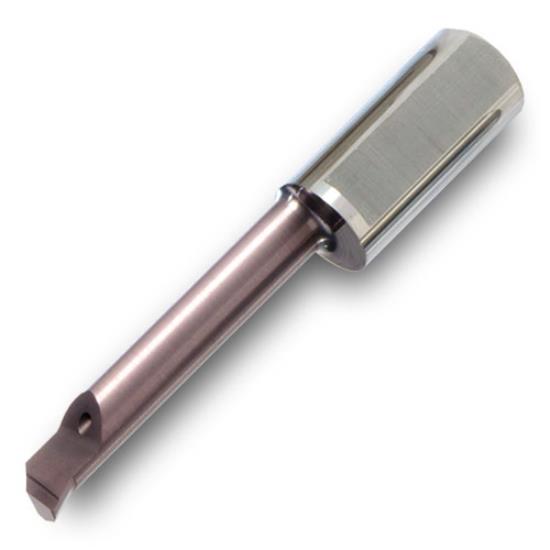

MINTL07-140015D050 TT9030 TMicro Insert

This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
MINTL07-140015D050 TT9030 TMicro Insert MINTL07-140015D050 TT9030 TMicro Insert MINTL07-140015D050 TT9030 TMicro Insert MINTL07-140015D050 TT9030 TMicro Insert
INGERSOLL CUTTING TOOLS
6861107
6861107
MINTL07-140015D050 TT9030
MINTL07-140015D050 TT9030
Weight: 0.029 LBS
Brand: INGERSOLL CUTTING TOOLS
$56.60
(14% off)
$48.89
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

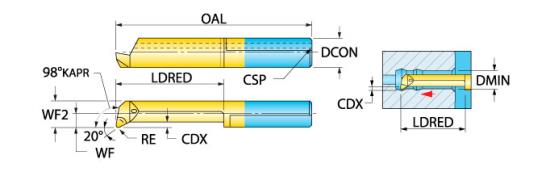

Mintl07-140015D050 Tt9030 Tmicro Insert Iso Item #Mintl07-140015D050 Tt9030 Ingersoll Part #6861107 Oal - Overall Length: 1.181. Csp - Coolant: Yes. Hand - Hand: Left. Wf - Functional Width: 0.075. Cdx - Cutting Depth Max.: 0.020. Dmin - Min. Bore Diameter : 0.197. Re - Corner Radius: 0.006. Dcon - Shank Diameter : 0.276. Ldred - Reduced Body Diameter Length: 0.550. Wf2 - Functional Width 2: 0.173. Oal - Overall Length: 1.181. Csp - Coolant: Yes. Hand - Hand: Left. Wf - Functional Width: 0.075. Cdx - Cutting Depth Max.: 0.020. Dmin - Min. Bore Dia.: 0.197. Re - Corner Radius: 0.006. Bmc - Body Material Code: Carbide. Ldred - Reduced Body Dia. Length: 0.551. Dcon - Shank Dia.: 0.276. Wf2 - Functional Width 2: 0.173.

  • Internal Turning and Profiling
  • 0.024" min.
  • Internal Turning and Profiling
  • 0.024" min.
  • Single ended T-Micro sleeve
  • Single ended T-Micro sleeve (Metric)
  • Double ended T-Micro sleeve
  • All sleeves applicable for Citizen Swiss type machine
  • Double ended T-Micro sleeve (Metric)
  • All sleeves applicable for Citizen Swiss type machine
Shipping & Delivery Options
Illinois
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $19.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
INGERSOLL CUTTING TOOLS
Manufacturer Part Number
6861107
Overall Length
1.181"
Radius Size
0.006"
Tool Coating
TiAlN
Grade
TT9030
Coolant Through
Yes
