0.5000" Diameter RE1-.5003.123.12Z5030W6 RhinoRound 5 Flt
This vendor requires us to bring the item into our Florida warehouse for the following states: AL,AZ,CO,DC,HI,ID,LA,ME,MD,MA,MS,MO,NM,NY,SC,VA,PR,AK,CT,OR before shipping to you.
9590535
9590535
RE1-.5003.123.12Z5030W6
RE1-.5003.123.12Z5030W6
Brand: INGERSOLL CUTTING TOOLS
Product Description

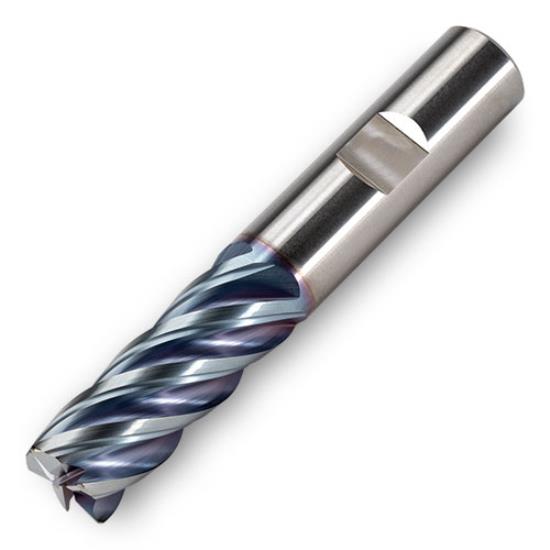

Re1-.5003.123.12Z5030w6 Rhinoround 5 Flt Dc - Cutting Diameter : 0.5000. Re/Chw - Corner Radius/Chamfer: 0.030 R. Apmx - Depth Of Cut Max.: 3.125. Oal - Overall Length: 6.00. Zeff - Eff. Teeth: 5. Fha - Flute Helix Angle: 38. Dcon - Shank Diameter : 0.500. Csp - Coolant: No. Rmpx - Ramp Angle Max.: 1.5. Kapr - Cutting Edge Angle: 90. Lux - Usable Length Max.: 3.125. Lpr - Projection Length: 4.229. Dc - Cutting Dia.: 0.5000. Re/Chw - Corner Radius/Chamfer: 0.030 R. Apmx - Depth Of Cut Max.: 3.125. Oal - Overall Length: 6.00. Zeff - Eff. Teeth: 5. Fha - Flute Helix Angle: 38. Dcon - Shank Dia.: 0.500. Csp - Coolant: No. Rmpx - Ramp Angle Max.: 1.5. Kapr - Cutting Edge Angle: 90. Lux - Usable Length Max.: 3.125. Lpr - Projection Length: 4.229.
- 0.250-1.000"
- Weldon Flat Shank
- 5 Flute, 38 Degree Helix
- Variable Pitch
- Corners: Sharp, .015" .030" .060" .090" .125" R
- 0.250-1.000"
- Weldon Flat Shank
- 5 Flute, 38deg Helix
- Variable Pitch
- Corners: Sharp, .015" .030" .060" .090" .125" R
- BT MAS-403
- Weldon End Mill Holder DIN 6359/DIN 1835 Form B
- AD Style Coolant (coolant through the center)
- BT MAS-403 Face Contact
- INCH Weldon End Mill Holder DIN 1835 Form B
- AD Style Coolant (coolant through the center)
- Balanced G2.5@25,000RPM
- C-Adapter (ISO 26623-1)
- INCH Weldon Shank End Mill Holder
- Per DIN 1835 Form B
- Quick Change Holder
- CAT V-Flange
- INCH Weldon Style End Mill Holder DIN 6359/1835 Form B
- AD Style Coolant (coolant through the center)
- CAT Face Contact
- Weldon End Mill Holder DIN 1835 Form B
- AD Style Coolant (coolant through the center)
- ER Series DIN6499 Spring Collet
- Single Diameter
- .0004" Runout Tolerance
- Super Finish Surface with Anti-Corrosion Protection
- Recommended for improved runout & clamping torque
- For use with solid shank cutting tools
- HSK DIN69893 Form A
- INCH Weldon End Mill Holder DIN6355/DIN1835 Form B
- Sealed Reduction Sleeve
- For use in hydraulic milling chucks
- Note: Sleeves are compatible with all cylindrical shanks and Weldon shanks .250"-.750" diameter (Sleeves are not recommended for use with Weldon shanks over .750" diameter)
Shipping & Delivery Options
Illinois
Suncoast Shipping Deals
| Min. order amount |
Shipping Option |
Special Rate |
Max Weight |
|
$50.00
|
UPS Blue 2 Business Days |
$19.99 |
5 LBS |
| Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout. |
$50.00 MINIMUM ORDER
If ordered by 4pm Eastern Standard Time items will be ordered and shipped to our Florida location from Ingesoll. Once received, we will ship from our warehouse and provide you with the tracking number. We can drop-ship directly to Florida customers.
Additional Product Details
Technical Details
- Manufacturer
- INGERSOLL CUTTING TOOLS
- Manufacturer Part Number
- 9590535
- Cutter Diameter
- 0.5000"
- Overall Length
- 6"
- Radius Size
- 0.03"
-
Coolant Through
- No
