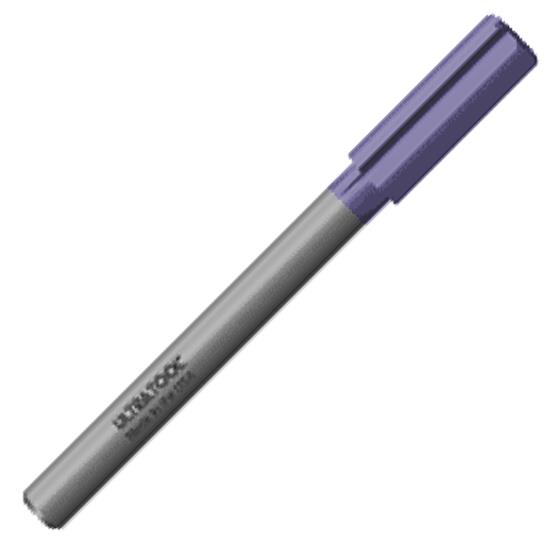

5.5mm Straight Flute Standard Length Solid Carbide Chucking Reamer, 6 Flutes, 25mm LOC, 4.5mm Shank, 76mm OAL, TiAlN Coated. Made in USA Ultra-Tool® Part #40059TA

5.5mm Straight Flute Standard Length Solid Carbide Chucking Reamer, 6 Flutes, 25mm LOC, 4.5mm Shank, 76mm OAL, TiAlN Coated. Made in USA Ultra-Tool® Part #40059TA
ULTRA TOOL/TOOL ALLIANCE
40059TA
40059TA
40059TA
0.2126" 5.5mm
Weight: 0.1 LBS
Brand: ULTRA TOOL/TOOL ALLIANCE
$79.50
each
Add To My Favorites Coupon Available
Technical Details & Downloads
Technical/Extra Information Catalog Page
Product Description

Ultra-Tool® Series 400 - Solid Carbide Straight Flute Fractional Size In-Stock Standard Length Chucking Reamers. Manufactured From Ultra-Carb® Premium Micro-Grain Carbide Substrate. Reamers Are Right Hand Cutting With A 45° Lead Chamfer Angle For Ease Of Entry Into Hole. These Straight Flute Reamers Are Appropriate For All General Reaming Applications. Spiral Flute Reamers, In General, Will Produce A Better Surface Finish. Right Hand Sprial Flute Reamers Pull The Chip Upwards, Greatly Improving Chip Evacuation, And Should Therefore Be Used In Any Blind Hole Application. Left Hand Spiral Flute Reamers Push The Chips Downward And Are Recommended For Through-Hole Applications. The Shearing Action Is Excellent For Holes With Interruptions, Like Cross-Holes, Keyways And Elongated Slots.

  • Ultra-Tool® Series 400 - Solid Carbide Straight Flute Standard Length Chucking Reamers
  • Manufactured From Ultra-Carb® Premium Micro-Grain Carbide Substrate
  • Straight Flute Reamers Are Appropriate For All General Reaming Applications
  • Male Centers On Both Ends Of Reamer
  • 45° Lead Chamfer Angle For Ease Of Entry Into Hole
  • Reamer Diameter Tolerance: + 0.0002" / - 0.0000"
  • Shank Diameter Tolerance: +/- 0.0005"
  • Flute Length Tolerance: +/- 0.030"
  • Overall Length Tolerance: +/- 0.060"
Made in U.S.A.
Shipping & Delivery Options
HUNTINGTON BEACH, CALIFORNIA, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$50.00 UPS Blue 2 Business Days $13.99 5 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$50.00 MINIMUM ORDER
If ordered by 3pm Eastern Standard Time Ultra Tool will Ship Same Business Day.
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
ULTRA TOOL/TOOL ALLIANCE
Manufacturer Part Number
40059TA
Length Of Flute
0.984" 25mm
Overall Length
2.99" 76mm
Shank Diameter
0.1772" 4.5mm
Number Of Flutes
6 Flutes
Tool Coating
TiAlN Coated
Tool Substrate Material
Solid Carbide
Inch Or Metric
Metric
Country of Origin
U.S.A.
Series
400
Style
Straight Flute
Brand
Ultra-Tool®
Type
Standard Length
Shank Type
Reduced Diameter Shank
Reamer Diameter
0.2126" 5.5mm
