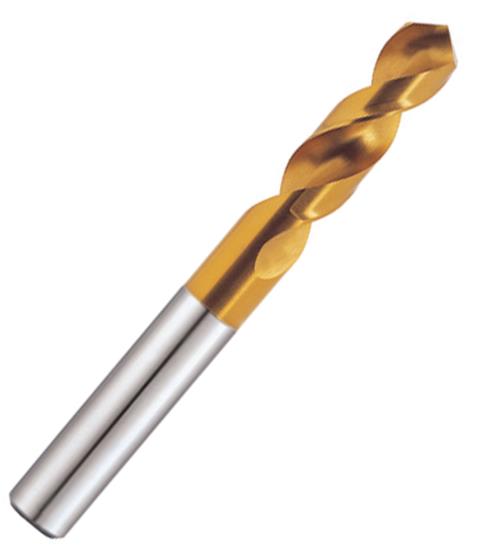

2.0mm Diameter 2 Flute YG Screw Machine (Stub) Length TiN Coated HPD-SUS Drill For Stainless, HSS-EX (High Vanadium Steel), 130° 4 Facet Point, Straight Shank, 12mm Flute Length, 44mm OAL

2.0mm Diameter 2 Flute YG Screw Machine (Stub) Length TiN Coated HPD-SUS Drill For Stainless, HSS-EX (High Vanadium Steel), 130° 4 Facet Point, Straight Shank, 12mm Flute Length, 44mm OAL 2.0mm Diameter 2 Flute YG Screw Machine (Stub) Length TiN Coated HPD-SUS Drill For Stainless, HSS-EX (High Vanadium Steel), 130° 4 Facet Point, Straight Shank, 12mm Flute Length, 44mm OAL 2.0mm Diameter 2 Flute YG Screw Machine (Stub) Length TiN Coated HPD-SUS Drill For Stainless, HSS-EX (High Vanadium Steel), 130° 4 Facet Point, Straight Shank, 12mm Flute Length, 44mm OAL 2.0mm Diameter 2 Flute YG Screw Machine (Stub) Length TiN Coated HPD-SUS Drill For Stainless, HSS-EX (High Vanadium Steel), 130° 4 Facet Point, Straight Shank, 12mm Flute Length, 44mm OAL 2.0mm Diameter 2 Flute YG Screw Machine (Stub) Length TiN Coated HPD-SUS Drill For Stainless, HSS-EX (High Vanadium Steel), 130° 4 Facet Point, Straight Shank, 12mm Flute Length, 44mm OAL 2.0mm Diameter 2 Flute YG Screw Machine (Stub) Length TiN Coated HPD-SUS Drill For Stainless, HSS-EX (High Vanadium Steel), 130° 4 Facet Point, Straight Shank, 12mm Flute Length, 44mm OAL 2.0mm Diameter 2 Flute YG Screw Machine (Stub) Length TiN Coated HPD-SUS Drill For Stainless, HSS-EX (High Vanadium Steel), 130° 4 Facet Point, Straight Shank, 12mm Flute Length, 44mm OAL
YG-1 TOOL CO.
0201JCN
0201JCN
0201JCN
0.0787" 02.00mm
Weight: 0.01 LBS
Brand: YG-1 TOOL CO.
$13.84
(31% off)
$9.61
each
Add To My Favorites Coupon Available
Technical Details & Downloads
Technical/Extra Information Catalog Page Catalog Page
Product Description

2.0Mm Diameter 2 Flute Yg Screw Machine (Stub) Length Tin Coated Hpd-Sus Drill For Stainless, Hss-Ex (High Vanadium Steel), 130° 4 Facet Point, Straight Shank, 12Mm Flute Length, 44Mm Oal

  • YG HPD-SUS screw machine (stub) length TiN Coated HSS-EX (high vanadium steel) drills are designed for powerful drilling in stainless steels, mild steels, aluminum, aluminum alloy, aluminum die cast, copper, copper alloy, etc.
  • High vanadium HSS-EX material with superior TiN coating - for higher speeds and feeds, with longer service life
  • High helix angle - 38° and sharp cutting edges to avoid built-up edges are well suited for high performance drilling
  • Wider flutes increase chip removal for high quality surface finishes and higher productivity
  • Stub length to reduce vibrations and deflection
  • 130° (up to 4mm) & 120° (over 4mm) self centering 4 facet point - center drilling not required

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$75.00 Economy (5 - 7 days)**
(This deal only applies to our Local Florida in stock items)		 $0.00 5 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
100
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
0201JCN
Length Of Flute
12 mm
Overall Length
44 mm
Shank Diameter
Equals Drill Diameter
Number Of Flutes
2
Drill Point Angle
130°
Drill Type
Screw Machine, Stub Drill
Helix Angle
38°
Tool Coating
TiN
Tool Substrate Material
HSS-EX High Vanadium Steel
Primary Application
Stainless Steels, Mild Steels, Low Carbon Steels
Hand Cutting Direction
Right Hand Cut
Country of Origin
Korea, Republic of
Series
HPD-SUS Drill
Single Or Double End
Single End
Shank Type
Straight Shank
Drill Diameter
0.0787" 02.00mm
Coolant Through
Without Coolant Holes
