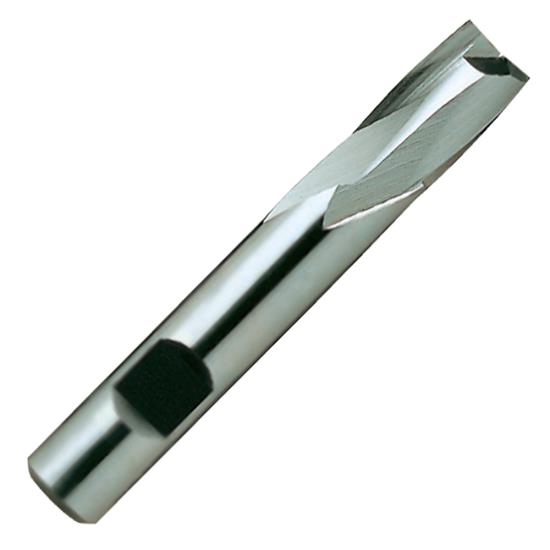

5/8" 2 Flute Square End Close Tolerance (+.0000"/- .0015") Keyway Cutting End Mill, 1-5/16"LOC, 5/8"Shank w/Flat, 3-7/16"OAL, 15° Helix, HSS-Co8% M42 Cobalt, TiN Coated

5/8" 2 Flute Square End Close Tolerance (+.0000"/- .0015") Keyway Cutting End Mill, 1-5/16"LOC, 5/8"Shank w/Flat, 3-7/16"OAL, 15° Helix, HSS-Co8% M42 Cobalt, TiN Coated
YG-1 TOOL CO.
14337CN
14337CN
14337CN
0.6250" 5/8"
Weight: 0.297 LBS
Brand: YG-1 TOOL CO.
$86.92
(31% off)
$60.36
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

5/8" 2 Flute Square End Close Tolerance (+.0000"/- .0015") Keyway Cutting End Mill, 1-5/16"Loc, 5/8"Shank W/Flat, 3-7/16"Oal, 15° Helix, Hss-Co8% M42 Cobalt, Tin Coated

  • YG-1 Series E2163: Inch size HSS-Co8% M42 cobalt end mills, center cutting, single end, square end, 2 flutes, Weldon Flat shank, 15° helix, Keyway cutting end mills
  • E2163 are keyway cutting end mills that have the same design as the general purpose of two flute single end mill, but are held to a mill diameter tolerance of +.0000 -.0015.
  • These close tolerance end mills are recommended for cutting keyway which must be held close to nominal size.

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory
0
Currently Unavailable Notify Me
Please sign in or register to be notified when this product is back in stock.

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
14337CN
Tool Diameter
0.6250" 5/8"
Length Of Cut
1.312"
Overall Length
3.437"
Shank Diameter
0.6250" 5/8"
Radius Size
Sharp
Number Of Flutes
2
Helix Angle
15°
End Style
Square
Tool Coating
TiN
Tool Substrate Material
Cobalt - M42 HSS-Co8%
Primary Application
Keyway Cutting
Max Reach
0.000"
Hand Cutting Direction
Right Hand
Inch Or Metric
Inch
Country of Origin
Korea, Republic of
Hand Helix Direction
Right Hand
Series
E2163
Single Or Double End
Single End
Center Cutting
Center Cutting
Type Of End Mill
Finisher
Model
HSS & COBALT END MILLS
Shank Type
Weldon Flat Shank
Helix Type
Equal Index
