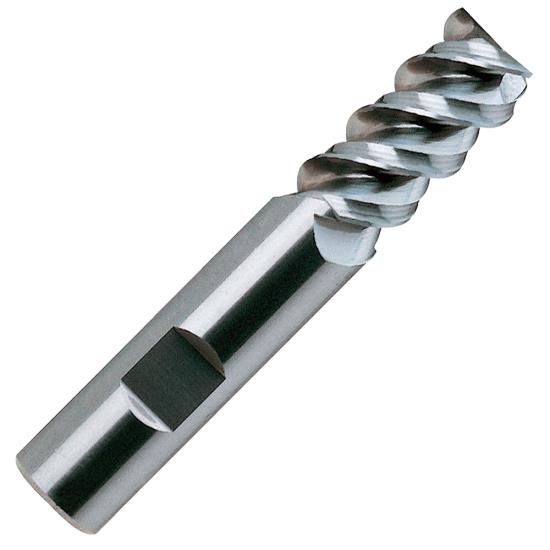

3/4" 3 Flute Square End Standard Length Carbide End Mill, 1-1/2" LOC, 3/4" Shank w/Flat, 4" OAL, 60° Helix, Bright Finish For Stainless Steels, Alloy Steels & Hi-Temp Alloys

YG-1 TOOL CO.

20598

0.7500" 3/4"

Weight: 0.94 LBS

Brand: YG-1 TOOL CO.

$314.33

(30% off)

$220.44

each

Add To My Favorites

Technical Details & Downloads

Technical/Extra Information Catalog Page Catalog Page

Product Description

3/4" 3 Flute Square End Standard Length Carbide End Mill, 1-1/2" Loc, 3/4" Shank W/Flat, 4" Oal, 60° Helix, Bright Finish For Stainless Steels, Alloy Steels & Hi-Temp Alloys

YG-1 Series E5246: Inch size general purpose micrograin end mills, 60° helix, diameters 1/8" to 5/16" have a plain shank, diameters 3/8" to 1" have a Weldon Flat shank, center cutting, 3 flutes, square end, regular length, TiN, TiCN, TiAlN TYLON-FUTURA & TiAlN TYLON-EXTREME coatings available
Designed to Machine Stainless Steel, Inconel, Titamium and other hard to Machine Materials.
Excellent shearing action and chip ejection due to the 60° helix
20% to 30% increase in chip load recommended over 30° helix tools
TYLON super TiAlN coating are recommended for maximum performance.

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of

YG-1 TOOL CO. Brand Home

Shipping & Delivery Options

VERNON HILLS, ILLINOIS, USA

Suncoast Shipping Deals

Min. order amount	Shipping Option	Special Rate	Max Weight
$399.00	UPS Ground 1 – 4 Business days (Lower 48 States)	$0.00	10 LBS
$75.00	Economy (5 - 7 days)** (This deal only applies to our Local Florida in stock items)	$0.00	5 LBS
$25.00	UPS Ground 1 – 4 Business days (Lower 48 States)	$8.99	15 LBS
$499.00	UPS Blue 2 Business Days	$9.99	7 LBS
$399.00	UPS Blue 2 Business Days	$13.99	5 LBS
$50.00	UPS Blue 2 Business Days	$15.99	6 LBS
$50.00	UPS Red by 10:30am 1 Business Day	$31.99	2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.

$25.00 MINIMUM ORDER

If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day

Factory Stock

Additional Product Details

Technical Details

Manufacturer: YG-1 TOOL CO.
Manufacturer Part Number: 20598
Tool Diameter: 0.7500" 3/4"
Length Of Cut: 1.500"
Overall Length: 4.000"
Shank Diameter: 0.7500" 3/4"
Length Below Shank: 0.000"
Radius Size: Sharp
Corner Radius: Sharp
Number Of Flutes: 3
Helix Angle: 60°
End Style: Square
Tool Coating: None
Tool Substrate Material: Carbide
Primary Application: General Purpose
Max Reach: 0.000"
Hand Cutting Direction: Right Hand
Inch Or Metric: Inch
Country of Origin: Korea, Republic of
Hand Helix Direction: Right Hand
Series: E5246
Single Or Double End: Single End
Center Cutting: Center Cutting
Type Of End Mill: Finisher
Model: GP CARBIDE END MILL
Shank Type: Weldon Flat Shank
Helix Type: Equal Index

3/4" 3 Flute Square End Standard Length Carbide End Mill, 1-1/2" LOC, 3/4" Shank w/Flat, 4" OAL, 60° Helix, Bright Finish For Stainless Steels, Alloy Steels & Hi-Temp Alloys
