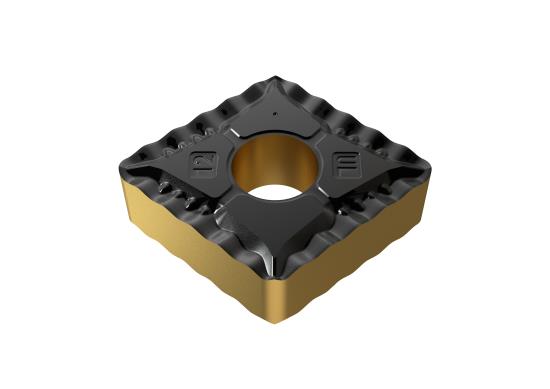

CNMG431-UL / CNMG120404-UL Grade YG3020 Carbide Insert, CVD TiCN+Al2O3 Coated, UL chip breaker for finish to semi-finishing applications in steel.

CNMG431-UL / CNMG120404-UL Grade YG3020 Carbide Insert, CVD TiCN+Al2O3 Coated, UL chip breaker for finish to semi-finishing applications in steel.
YG-1 TOOL CO.
22000359
22000359
22000359
CNMG431-UL
CNMG120404-UL
Weight: 0.0246 LBS
Brand: YG-1 TOOL CO.
$21.71
(31% off)
$15.08
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Cnmg431-Ul / Cnmg120404-Ul Grade Yg3020 Carbide Insert, Cvd Ticn+Al2o3 Coated, Ul Chip Breaker For Finish To Semi-Finishing Applications In Steel.

  • UL chip breaker for finish to semi-finishing applications in steel.
  • YG3020 is a CVD-TiCN+Al2O3 gold & black coated grade for general steel turning
  • Sub-micron grain carbide for good toughness and high wear resistance with a special surface treatment on the top face of the insert for higher cutting speeds, smoother chip flow and longer insert life
  • 1st choice grade for versatility in general continuous and interrupted machining of low alloyed steels, high alloyed steels and tool steels.

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
100
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
22000359
ISO Part Number
CNMG120404
ANSI Part Number
CNMG431
Radius Size
0.016"
Thickness
0.1875"
Material
P15-P30
Tool Coating
CVD TiCN+Al2O3
Tool Substrate Material
Carbide
Primary Application
Semi-Finish Turning
Material Food Group
Steel
Country of Origin
Korea, Republic of
Grade
YG3020
Series
CNMG
Size
431
Shape
Rhombic 80°
Type
Turning, Negative
Inscribed Circle
0.5000"
Chip Breaker
UL
