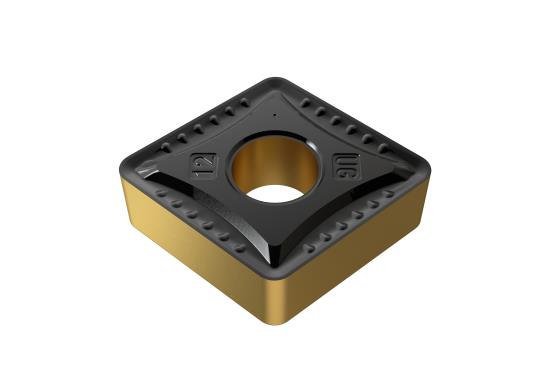

CNMG642-UG / CNMG190608-UG Grade YG3010 Carbide Insert, CVD TiCN+Al2O3 Coated, UG chip breaker 1st choice for semi-finish to medium turning steels and ductile cast iron.

CNMG642-UG / CNMG190608-UG Grade YG3010 Carbide Insert, CVD TiCN+Al2O3 Coated, UG chip breaker 1st choice for semi-finish to medium turning steels and ductile cast iron.
YG-1 TOOL CO.
22000801
22000801
22000801
CNMG642-UG
CNMG190608-UG
Weight: 0.053 LBS
Brand: YG-1 TOOL CO.
$49.65
(31% off)
$34.48
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Cnmg642-Ug / Cnmg190608-Ug Grade Yg3010 Carbide Insert, Cvd Ticn+Al2o3 Coated, Ug Chip Breaker 1St Choice For Semi-Finish To Medium Turning Steels And Ductile Cast Iron.

  • UG chip breaker 1st choice for semi-finish to medium turning steels and ductile cast iron.
  • YG3010 is a CVD-TiCN+Al2O3 gold & black coated grade for steel finishing and grey cast iron turning
  • Sub-micron grain carbide for high wear resistance with a special surface treatment on the top face of the insert for higher cutting speeds, smoother chip flow and longer insert life
  • 1st choice grade for light continuous machining of non-alloyed steels, low carbon steels, medium carbon steels and ductile cast iron.

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
100
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
22000801
ISO Part Number
CNMG190608
ANSI Part Number
CNMG642
Radius Size
0.031"
Thickness
0.2500"
Material
P05-P20, K15-K35
Tool Coating
CVD TiCN+Al2O3
Tool Substrate Material
Carbide
Primary Application
Medium Stable Turning
Material Food Group
Steel, Cast Iron
Country of Origin
Korea, Republic of
Grade
YG3010
Series
CNMG
Size
642
Shape
Rhombic 80°
Type
Turning, Negative
Inscribed Circle
0.7500"
Chip Breaker
UG
