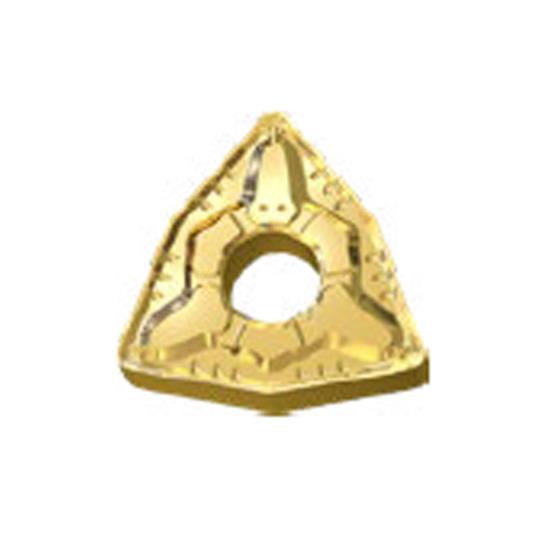

WNMG433-PWM / WNMG080412-PWM Grade YG3030 Carbide Insert, CVD TiCN+Al2O3 Coated, PWM wiper insert with chipbreaker for medium turning applications in steel.

WNMG433-PWM / WNMG080412-PWM Grade YG3030 Carbide Insert, CVD TiCN+Al2O3 Coated, PWM wiper insert with chipbreaker for medium turning applications in steel.
YG-1 TOOL CO.
22002064
22002064
22002064
WNMG433-PWM
WNMG080412-PWM
Weight: 0.032 LBS
Brand: YG-1 TOOL CO.
$22.98
(31% off)
$15.96
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Wnmg433-Pwm / Wnmg080412-Pwm Grade Yg3030 Carbide Insert, Cvd Ticn+Al2o3 Coated, Pwm Wiper Insert With Chipbreaker For Medium Turning Applications In Steel.

  • PWM wiper insert with chipbreaker for medium turning applications in steel.
  • YG3030 is a CVD-TiCN+Al2O3 gold & black coated grade for high speed stainless steel turning and heavily interrupted mild steel & low carbon alloyed steel turning
  • Sub-micron grain carbide for good toughness and high wear resistance with a special surface treatment on the top face of the insert for higher cutting speeds, smoother chip flow and longer insert life
  • 1st choice grade for heavily interrupted machining of low carbon alloyed steels & mild steels.

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
100
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
22002064
ISO Part Number
WNMG080412
ANSI Part Number
WNMG433
Radius Size
0.047"
Thickness
0.1875"
Material
P20-P35
Tool Coating
CVD TiCN+Al2O3
Tool Substrate Material
Carbide
Primary Application
Medium Turning with Wiper
Material Food Group
Steel
Country of Origin
Korea, Republic of
Grade
YG3030
Series
WNMG
Size
433
Shape
Trigon
Type
Turning, Negative
Inscribed Circle
0.5000"
Chip Breaker
PWM
