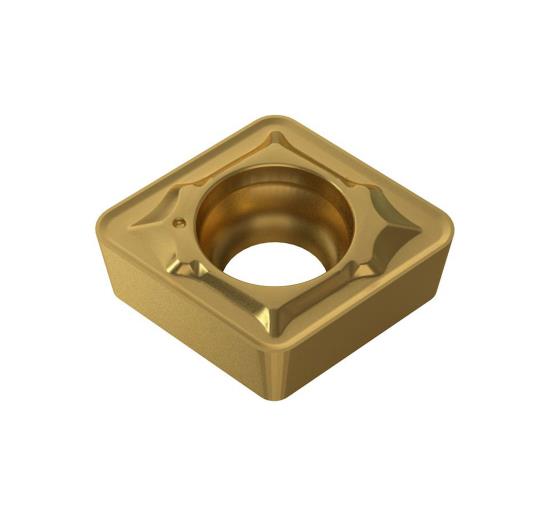

CCMT21.52-UG / CCMT060208-UG Grade YG3115 Carbide Insert, CVD MT-TiCN+Al2O3+TiN Coated, UG chip breaker for medium turning applications in steel.

CCMT21.52-UG / CCMT060208-UG Grade YG3115 Carbide Insert, CVD MT-TiCN+Al2O3+TiN Coated, UG chip breaker for medium turning applications in steel.
YG-1 TOOL CO.
22002378
22002378
22002378
CCMT21.52-UG
CCMT060208-UG
Weight: 0.0053 LBS
Brand: YG-1 TOOL CO.
$18.30
(31% off)
$12.71
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information
Product Description

Ccmt21.52-Ug / Ccmt060208-Ug Grade Yg3115 Carbide Insert, Cvd Mt-Ticn+Al2o3+Tin Coated, Ug Chip Breaker For Medium Turning Applications In Steel.

  • UG chip breaker for medium turning applications in steel.
  • YG3115 is a next generation CVD MT-TiCN+Al2O3+TiN coated grade for steel
  • Designed for high cutting speed with reliability of longer tool life
  • The new special sintering process results in a remarkable combination of high wear resistance and mechanical stress stability, increasing chipping resistance
  • YG-1's special post surface treatment and new coating enhances stability of the wear patterns with longer tool life, and extends the versatility of the grade from scale cuts in forged components and skin cuts in post heat treated components to both continuous and interrupted cuts
  • It meets the high coating adhesion demands from preventing built up edge commonly occurring in mild steel, low carbon steel and low carbon alloy steel.

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
100
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
22002378
ISO Part Number
CCMT060208
ANSI Part Number
CCMT21.52
Radius Size
0.031"
Thickness
0.0938"
Material
P10-P25
Tool Coating
CVD MT-TiCN+Al2O3+TiN
Tool Substrate Material
Carbide
Primary Application
Medium Stable Turning
Material Food Group
Steel
Country of Origin
Korea, Republic of
Grade
YG3115
Series
CCMT
Size
21.52
Shape
Rhombic 80°
Type
Turning, Positive
Inscribed Circle
0.2500"
Chip Breaker
UG
