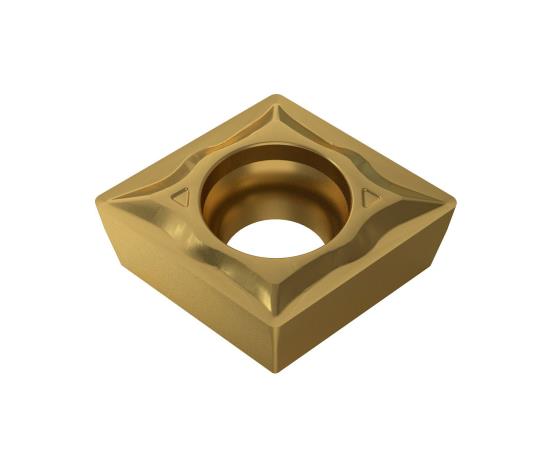

CCMT21.51-UF / CCMT060204-UF Grade YG3125 Carbide Insert, CVD MT-TiCN+Al2O3+TiN Coated, UF Chip Breaker For Finish Turning Steel

CCMT21.51-UF / CCMT060204-UF Grade YG3125 Carbide Insert, CVD MT-TiCN+Al2O3+TiN Coated, UF Chip Breaker For Finish Turning Steel
YG-1 TOOL CO.
22003195
22003195
22003195
CCMT21.51-UF
CCMT060204-UF
Weight: 0.0053 LBS
Brand: YG-1 TOOL CO.
$18.30
(31% off)
$12.71
each
Add To My Favorites
Technical Details & Downloads
Product Description

Ccmt21.51-Uf / Ccmt060204-Uf Grade Yg3125 Carbide Insert, Cvd Mt-Ticn+Al2o3+Tin Coated, Uf Chip Breaker For Finish Turning Steel

  • UF chip breaker for finish to semi-finish turning applications in steel.
  • YG3125 is a newly introduced next generation CVD MT-TiCN+Al2O3+TiN coated grade for steel machining
  • Combining a specially developed substrate with advanced coating technology, YG3125 is positioned as a reliable choice for users who are seeking enhanced productivity in steel turning applications
  • The YG3125 grade features a substrate that delivers excellent toughness and wear resistance, significantly extending tool life
  • The optimized carbide grain size and binder content result in a well-balanced structure between hardness and toughness, allowing the insert to withstand high heat during machining. Enhanced coating technology improves wear resistance and further extends tool life
  • YG-1’s surface treatment amplifies these benefits and contributes to superior surface finishes and smooth chip evacuation. Its distinctive shiny gold appearance improves visibility of wear on used edges

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
100
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
22003195
ISO Part Number
CCMT060204
ANSI Part Number
CCMT21.51
Radius Size
0.016"
Thickness
0.0938"
Material
P15-P35
Tool Coating
CVD MT-TiCN+Al2O3+TiN
Tool Substrate Material
Carbide
Primary Application
Finish Turning
Material Food Group
Steel
Country of Origin
Korea, Republic of
Grade
YG3125
Series
CCMT
Size
21.51
Shape
Rhombic 80°
Type
Turning, Positive
Inscribed Circle
0.2500"
Chip Breaker
UF
