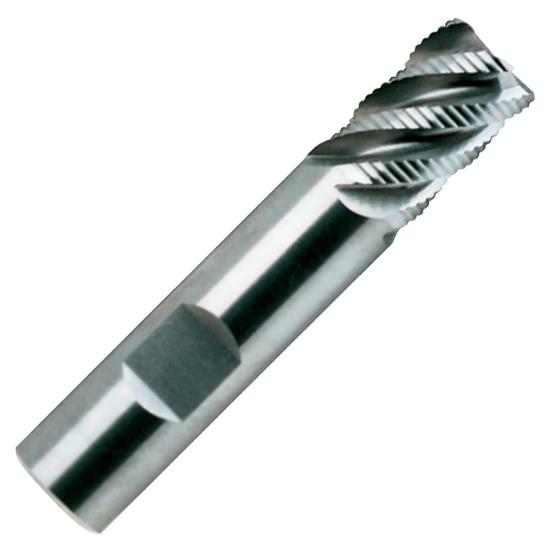

5/8" 5 Flute With .060" Radius Regular Length Carbide Fine Tooth Rougher, 5/8" Shank w/Flat, 1-5/8" LOC, 3.5" OAL. YG-1 Multi-Purpose 45° Helix Bright Finish For General Purpose Use

YG-1 TOOL CO.

82595

0.6250" 5/8"

Weight: 0.571 LBS

Brand: YG-1 TOOL CO.

$336.85

(30% off)

$236.23

each

Add To My Favorites

Technical Details & Downloads

Technical/Extra Information

Product Description

5/8" 5 Flute With .060" Radius Regular Length Carbide Fine Tooth Rougher, 5/8" Shank W/Flat, 1-5/8" Loc, 3.5" Oal. Yg-1 Multi-Purpose 45° Helix Bright Finish For General Purpose Use

YG-1 Series E5057: Inch size general purpose micrograin carbide roughing end mills, fine pitch roughing profile, Weldon Flat shank, 45° helix, center cutting, 5 flute, single end, corner radius, regular length, bright finish
5 flute design gives minimum harmonic vibration.
Ideal for profile milling.
Not recommended for slotting.

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of

YG-1 TOOL CO. Brand Home

Shipping & Delivery Options

VERNON HILLS, ILLINOIS, USA

Suncoast Shipping Deals

Min. order amount	Shipping Option	Special Rate	Max Weight
$399.00	UPS Ground 1 – 4 Business days (Lower 48 States)	$0.00	10 LBS
$75.00	Economy (5 - 7 days)** (This deal only applies to our Local Florida in stock items)	$0.00	5 LBS
$25.00	UPS Ground 1 – 4 Business days (Lower 48 States)	$8.99	15 LBS
$499.00	UPS Blue 2 Business Days	$9.99	7 LBS
$399.00	UPS Blue 2 Business Days	$13.99	5 LBS
$50.00	UPS Blue 2 Business Days	$15.99	6 LBS
$50.00	UPS Red by 10:30am 1 Business Day	$31.99	2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.

$25.00 MINIMUM ORDER

If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day

Factory Stock

Additional Product Details

Technical Details

Manufacturer: YG-1 TOOL CO.
Manufacturer Part Number: 82595
Tool Diameter: 0.6250" 5/8"
Length Of Cut: 1.625"
Overall Length: 3.500"
Shank Diameter: 0.6250" 5/8"
Length Below Shank: 0.000"
Radius Size: 0.060"
Corner Radius: 0.060"
Number Of Flutes: 5
Helix Angle: 45°
End Style: Radius
Tool Coating: None
Tool Substrate Material: Carbide
Primary Application: General Purpose
Max Reach: 0.000"
Hand Cutting Direction: Right Hand
Inch Or Metric: Inch
Country of Origin: Korea, Republic of
Hand Helix Direction: Right Hand
Series: E5057
Single Or Double End: Single End
Tooth Pitch: Fine Pitch
Center Cutting: Center Cutting
Type Of End Mill: Rougher, Fine Tooth
Model: GP CARBIDE ROUGHER
Shank Type: Weldon Flat Shank
Helix Type: Equal Index

5/8" 5 Flute With .060" Radius Regular Length Carbide Fine Tooth Rougher, 5/8" Shank w/Flat, 1-5/8" LOC, 3.5" OAL. YG-1 Multi-Purpose 45° Helix Bright Finish For General Purpose Use
