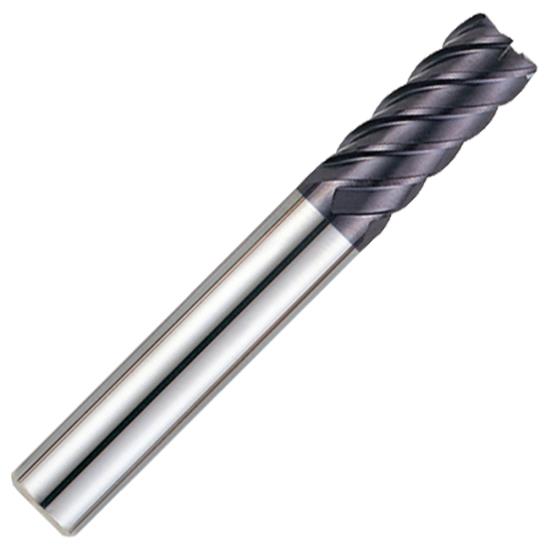

1/2" 6 Flute Square End Regular Length Carbide End Mill, 1/2"Plain Shank, 1"LOC, 3.250"OAL. YG-1 X-POWER 45° Helix X-Coated For Steels To HRc55

1/2" 6 Flute Square End Regular Length Carbide End Mill, 1/2"Plain Shank, 1"LOC, 3.250"OAL. YG-1 X-POWER 45° Helix X-Coated For Steels To HRc55 1/2" 6 Flute Square End Regular Length Carbide End Mill, 1/2"Plain Shank, 1"LOC, 3.250"OAL. YG-1 X-POWER 45° Helix X-Coated For Steels To HRc55 1/2" 6 Flute Square End Regular Length Carbide End Mill, 1/2"Plain Shank, 1"LOC, 3.250"OAL. YG-1 X-POWER 45° Helix X-Coated For Steels To HRc55 1/2" 6 Flute Square End Regular Length Carbide End Mill, 1/2"Plain Shank, 1"LOC, 3.250"OAL. YG-1 X-POWER 45° Helix X-Coated For Steels To HRc55 1/2" 6 Flute Square End Regular Length Carbide End Mill, 1/2"Plain Shank, 1"LOC, 3.250"OAL. YG-1 X-POWER 45° Helix X-Coated For Steels To HRc55

YG-1 TOOL CO.

93122

0.5000" 1/2"

Weight: 0.339 LBS

Brand: YG-1 TOOL CO.

$218.96

(30% off)

$153.56

each

Add To My Favorites

Technical Details & Downloads

Technical/Extra Information

Product Description

1/2" 6 Flute Square End Regular Length Carbide End Mill, 1/2"Plain Shank, 1"Loc, 3.250"Oal. Yg-1 X-Power 45° Helix X-Coated For Steels To Hrc55. Yg-1 X-Power Carbide End Mills Are Designed For High Performance, High Speed Cutting Carbon Steels, Non-Alloyed Steels, Cast Iron, Alloy Steels, Tool Steels, Mold Steels, Pre-Hardened Steels And Other Hardened Materials Up To Hrc55. Micrograin Carbide Substrate With X-Power Coating Exhibits Higher Hardness, Heat Resistance And Wear Resistance Allowing For Faster Speeds, Increased Feed Rates And Superior Workpiece Finishes, Suitable For Wet Or Dry Cutting.

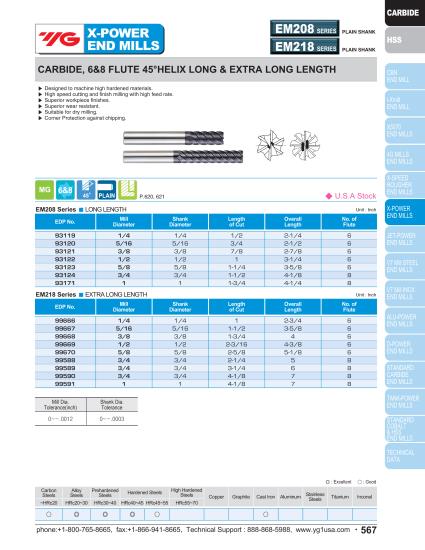

YG-1 X-POWER Series EM208: Inch size micrograin carbide end mills, plain shank, 6 & 8 flutes, 45° helix, center cutting, single end, square end, long length, X-Power coated
Designed to machine tool steel, alloy steel, mold steel and other high hardened materials up to HRc50.
High speed cutting and finish milling with high feed rate.
Superior workpiece finishes.
Superior wear resistant.
Suitable for dry milling.
Corner Protection against chipping.

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of

YG-1 TOOL CO. Brand Home

Shipping & Delivery Options

VERNON HILLS, ILLINOIS, USA

Suncoast Shipping Deals

Min. order amount	Shipping Option	Special Rate	Max Weight
$399.00	UPS Ground 1 – 4 Business days (Lower 48 States)	$0.00	10 LBS
$75.00	Economy (5 - 7 days)** (This deal only applies to our Local Florida in stock items)	$0.00	5 LBS
$25.00	UPS Ground 1 – 4 Business days (Lower 48 States)	$8.99	15 LBS
$499.00	UPS Blue 2 Business Days	$9.99	7 LBS
$399.00	UPS Blue 2 Business Days	$13.99	5 LBS
$50.00	UPS Blue 2 Business Days	$15.99	6 LBS
$50.00	UPS Red by 10:30am 1 Business Day	$31.99	2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.

$25.00 MINIMUM ORDER

If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day

Factory

Additional Product Details

Technical Details

Manufacturer: YG-1 TOOL CO.
Manufacturer Part Number: 93122
Tool Diameter: 0.5000" 1/2"
Length Of Cut: 1.000"
Overall Length: 3.250"
Shank Diameter: 0.5000" 1/2"
Length Below Shank: 0.000"
Radius Size: Sharp
Corner Radius: Sharp
Number Of Flutes: 6
Helix Angle: 45°
End Style: Square
Tool Coating: X-Power Coated
Tool Substrate Material: Carbide
Primary Application: Alloy, Pre-Hardened, Hardened Steels to HRc55
Max Reach: 0.000"
Hand Cutting Direction: Right Hand
Inch Or Metric: Inch
Country of Origin: Korea, Republic of
Hand Helix Direction: Right Hand
Series: EM208
Single Or Double End: Single End
Center Cutting: Center Cutting
Type Of End Mill: Finisher
Model: X-POWER
Shank Type: Plain Shank
Helix Type: Equal Index

1/2" 6 Flute Square End Regular Length Carbide End Mill, 1/2"Plain Shank, 1"LOC, 3.250"OAL. YG-1 X-POWER 45° Helix X-Coated For Steels To HRc55
