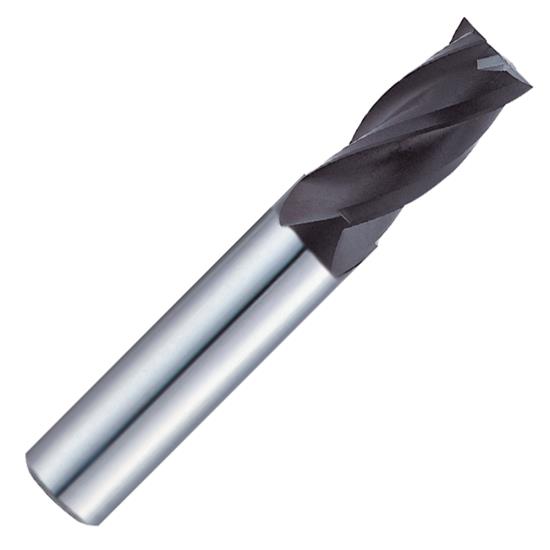

3/16" 4 Flute Square End Regular Length Carbide End Mill, 3/16" Plain Shank, .625" LOC, 2" OAL. YG-1 D-POWER 30° Helix Diamond Coated For Graphite

3/16" 4 Flute Square End Regular Length Carbide End Mill, 3/16" Plain Shank, .625" LOC, 2" OAL. YG-1 D-POWER 30° Helix Diamond Coated For Graphite 3/16" 4 Flute Square End Regular Length Carbide End Mill, 3/16" Plain Shank, .625" LOC, 2" OAL. YG-1 D-POWER 30° Helix Diamond Coated For Graphite 3/16" 4 Flute Square End Regular Length Carbide End Mill, 3/16" Plain Shank, .625" LOC, 2" OAL. YG-1 D-POWER 30° Helix Diamond Coated For Graphite 3/16" 4 Flute Square End Regular Length Carbide End Mill, 3/16" Plain Shank, .625" LOC, 2" OAL. YG-1 D-POWER 30° Helix Diamond Coated For Graphite 3/16" 4 Flute Square End Regular Length Carbide End Mill, 3/16" Plain Shank, .625" LOC, 2" OAL. YG-1 D-POWER 30° Helix Diamond Coated For Graphite
YG-1 TOOL CO.
99630
99630
99630
0.1875" 3/16"
Weight: 0.029 LBS
Brand: YG-1 TOOL CO.
$118.69
(31% off)
$82.42
each
Add To My Favorites Coupon Available
Technical Details & Downloads
Technical/Extra Information Catalog Page Catalog Page
Product Description

3/16" 4 Flute Square End Regular Length Carbide End Mill, 3/16" Plain Shank, .625" Loc, 2" Oal. Yg-1 D-Power 30° Helix Diamond Coated For Graphite

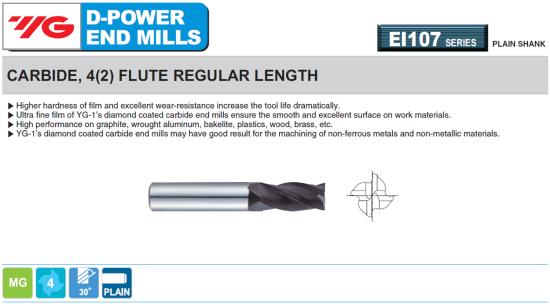

  • YG-1 D-POWER Diamond Coated End Mills For Graphite Series EI107: Inch size micrograin carbide end mills, plain shank, 30° helix, center cutting, 4 flute, single end, square end, regular length, diamond coated
  • Higher hardness of film and excellent wear-resistance increase the tool life dramatically.
  • Ultra fine film of YG-1’s diamond coated carbide end mills ensure a smooth and excellent surface finish on work materials.
  • High performance on graphite, wrought aluminum, bakelite, plastics, wood, brass, etc.
  • YG-1’s diamond coated carbide end mills may have good result for the machining of non-ferrous metals and non-metallic materials.

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$75.00 Economy (5 - 7 days)**
(This deal only applies to our Local Florida in stock items)		 $0.00 5 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
100
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
99630
Tool Diameter
0.1875" 3/16"
Length Of Cut
0.625"
Overall Length
2.000"
Shank Diameter
0.1875" 3/16"
Length Below Shank
0.000"
Radius Size
Sharp
Corner Radius
Sharp
Number Of Flutes
4
Helix Angle
30°
End Style
Square
Tool Coating
Diamond
Tool Substrate Material
Carbide
Primary Application
Graphite, Non-Ferrous, Non-Metals
Max Reach
0.000"
Hand Cutting Direction
Right Hand
Inch Or Metric
Inch
Country of Origin
Korea, Republic of
Hand Helix Direction
Right Hand
Series
EI107
Single Or Double End
Single End
Center Cutting
Center Cutting
Type Of End Mill
Finisher
Model
D-POWER
Shank Type
Plain Shank
Helix Type
Equal Index
