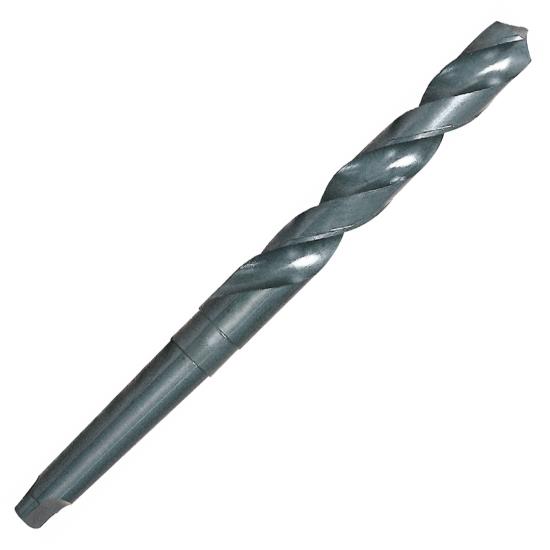

1-11/16" Diameter 2 Flute MT5 Morse Taper Shank Twist Drill, High Speed Steel (M2), Black Oxide Finish, 118° Standard Point, 10-1/8" Flute Length, 17-1/8" OAL

1-11/16" Diameter 2 Flute MT5 Morse Taper Shank Twist Drill, High Speed Steel (M2), Black Oxide Finish, 118° Standard Point, 10-1/8" Flute Length, 17-1/8" OAL 1-11/16" Diameter 2 Flute MT5 Morse Taper Shank Twist Drill, High Speed Steel (M2), Black Oxide Finish, 118° Standard Point, 10-1/8" Flute Length, 17-1/8" OAL 1-11/16" Diameter 2 Flute MT5 Morse Taper Shank Twist Drill, High Speed Steel (M2), Black Oxide Finish, 118° Standard Point, 10-1/8" Flute Length, 17-1/8" OAL 1-11/16" Diameter 2 Flute MT5 Morse Taper Shank Twist Drill, High Speed Steel (M2), Black Oxide Finish, 118° Standard Point, 10-1/8" Flute Length, 17-1/8" OAL 1-11/16" Diameter 2 Flute MT5 Morse Taper Shank Twist Drill, High Speed Steel (M2), Black Oxide Finish, 118° Standard Point, 10-1/8" Flute Length, 17-1/8" OAL 1-11/16" Diameter 2 Flute MT5 Morse Taper Shank Twist Drill, High Speed Steel (M2), Black Oxide Finish, 118° Standard Point, 10-1/8" Flute Length, 17-1/8" OAL
YG-1 TOOL CO.
D1211144
D1211144
D1211144
1.6875" 1-11/16"
Weight: 11.26 LBS
Brand: YG-1 TOOL CO.
$468.17
(33% off)
$312.11
each
Add To My Favorites
Technical Details & Downloads

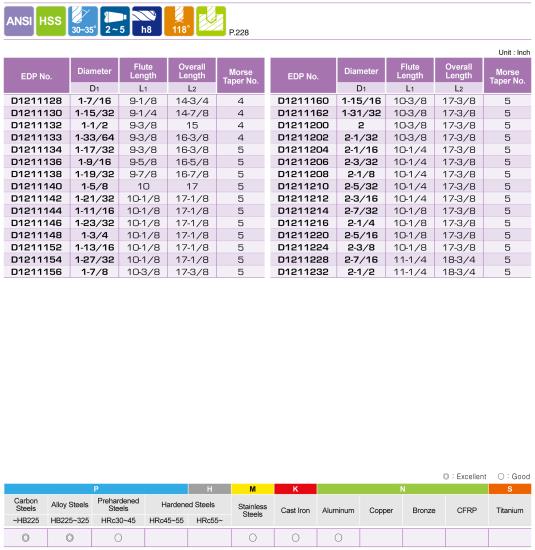

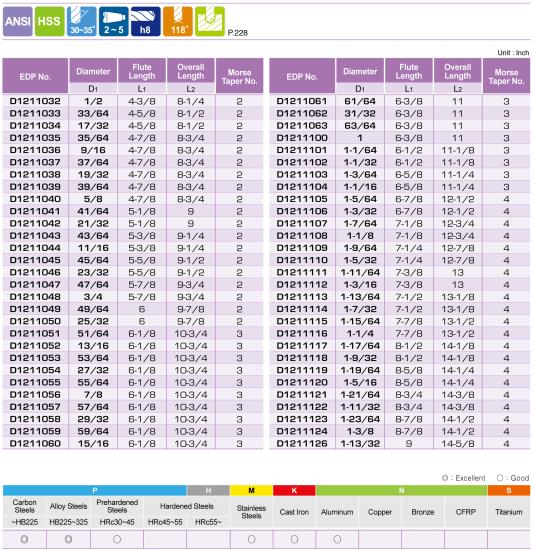

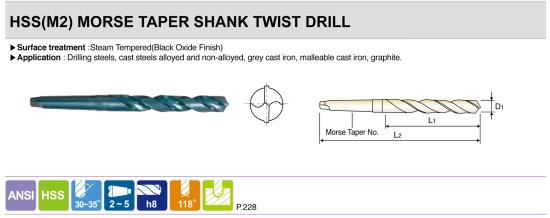

Technical/Extra Information Catalog Page Catalog Page
Product Description

1-11/16" Diameter 2 Flute Mt5 Morse Taper Shank Twist Drill, High Speed Steel (M2), Black Oxide Finish, 118° Standard Point, 10-1/8" Flute Length, 17-1/8" Oal

  • YG M2 high speed steel Morse Taper Shank twist drills
  • Right hand spiral, 30 - 35° helix
  • Steam Tempered (Black Oxide Finish)
  • For drilling in steel, cast steel alloyed and non-alloyed, grey cast iron, graphite, malleable cast iron

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
28
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
D1211144
Length Of Flute
10.125"
Overall Length
17.125"
Shank Diameter
Morse Taper #5
Number Of Flutes
2
Drill Point Angle
118°
Drill Type
Morse Taper Shank Drill
Helix Angle
30 - 35°
Tool Coating
Black Oxide
Tool Substrate Material
HSS M2 High Speed Steel
Primary Application
General Purpose
Hand Cutting Direction
Right Hand Cut
Country of Origin
Korea, Republic of
Series
General Purpose Drill
Single Or Double End
Single End
Shank Type
Morse Taper Shank
Drill Diameter
1.6875" 1-11/16"
Coolant Through
Without Coolant Holes
