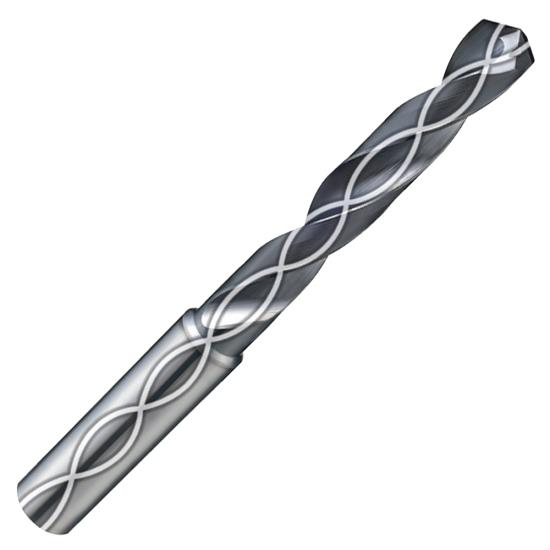

1/4" Diameter 2 Flute YG Carbide Dream Drill For Aluminum, 118° Point, 5XD With Coolant Holes, DLC (Diamond Like Carbon) Coated - 8mm Shank x 53mm Flute Length x 91mm OAL

1/4" Diameter 2 Flute YG Carbide Dream Drill For Aluminum, 118° Point, 5XD With Coolant Holes, DLC (Diamond Like Carbon) Coated - 8mm Shank x 53mm Flute Length x 91mm OAL 1/4" Diameter 2 Flute YG Carbide Dream Drill For Aluminum, 118° Point, 5XD With Coolant Holes, DLC (Diamond Like Carbon) Coated - 8mm Shank x 53mm Flute Length x 91mm OAL 1/4" Diameter 2 Flute YG Carbide Dream Drill For Aluminum, 118° Point, 5XD With Coolant Holes, DLC (Diamond Like Carbon) Coated - 8mm Shank x 53mm Flute Length x 91mm OAL 1/4" Diameter 2 Flute YG Carbide Dream Drill For Aluminum, 118° Point, 5XD With Coolant Holes, DLC (Diamond Like Carbon) Coated - 8mm Shank x 53mm Flute Length x 91mm OAL 1/4" Diameter 2 Flute YG Carbide Dream Drill For Aluminum, 118° Point, 5XD With Coolant Holes, DLC (Diamond Like Carbon) Coated - 8mm Shank x 53mm Flute Length x 91mm OAL 1/4" Diameter 2 Flute YG Carbide Dream Drill For Aluminum, 118° Point, 5XD With Coolant Holes, DLC (Diamond Like Carbon) Coated - 8mm Shank x 53mm Flute Length x 91mm OAL 1/4" Diameter 2 Flute YG Carbide Dream Drill For Aluminum, 118° Point, 5XD With Coolant Holes, DLC (Diamond Like Carbon) Coated - 8mm Shank x 53mm Flute Length x 91mm OAL 1/4" Diameter 2 Flute YG Carbide Dream Drill For Aluminum, 118° Point, 5XD With Coolant Holes, DLC (Diamond Like Carbon) Coated - 8mm Shank x 53mm Flute Length x 91mm OAL
YG-1 TOOL CO.
DGE433016F
DGE433016F
DGE433016F
0.2500" 1/4" 'E'
Weight: 0.094 LBS
Brand: YG-1 TOOL CO.
$198.52
(30% off)
$139.22
each
Add To My Favorites Coupon Available
Technical Details & Downloads

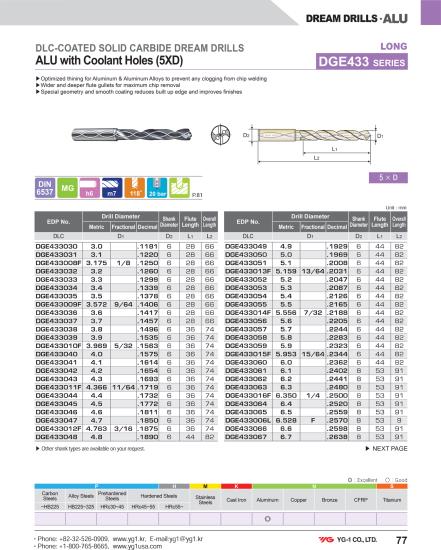

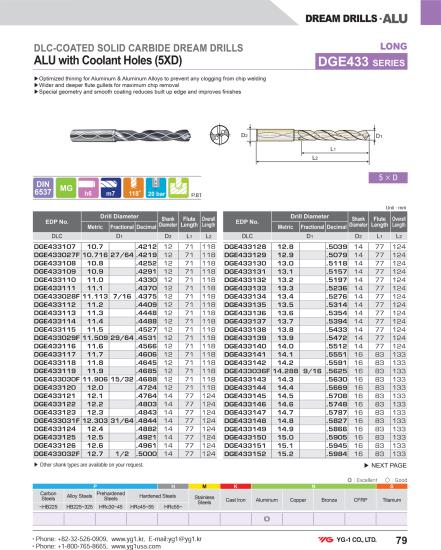

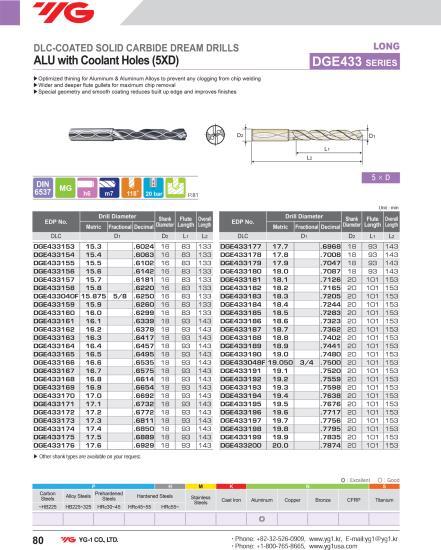

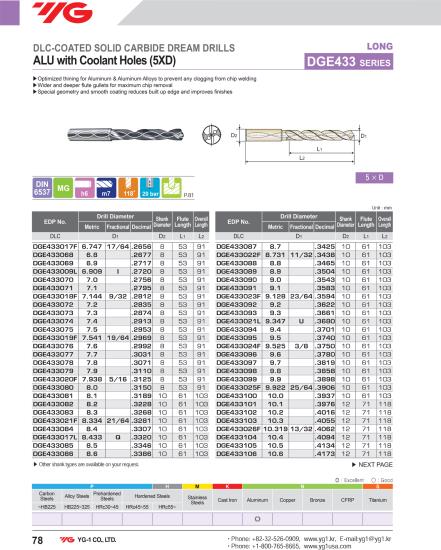

Technical/Extra Information Catalog Page
Product Description

1/4" Diameter 2 Flute Yg Carbide Dream Drill For Aluminum, 118° Point, 5Xd With Coolant Holes, Dlc (Diamond Like Carbon) Coated - 8Mm Shank X 53Mm Flute Length X 91Mm Oal

  • Optimized flute shape and geometry suitable for Aluminum and Aluminum Alloys
  • Optimized point thinning prevents any clogging from chip welding
  • Wider and deeper flute gullets for maximum chip removal
  • Polished flutes improve chip control and evacuation
  • High speed drilling is possible due to the special geometry
  • Smooth DLC (Diamond Like Carbon) coating reduces built up edge and improves surface finish

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$75.00 Economy (5 - 7 days)**
(This deal only applies to our Local Florida in stock items)		 $0.00 5 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
7
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
DGE433016F
Length Of Flute
53 mm
Overall Length
91 mm
Shank Diameter
8mm
Number Of Flutes
2
Drill Point Angle
118°
Drill Type
Ratio Drill 5XD
Helix Angle
30°
Tool Coating
DLC (Diamond Like Carbon)
Tool Substrate Material
Carbide
Primary Application
Aluminum, Aluminum Alloys
Hand Cutting Direction
Right Hand Cut
Country of Origin
Korea, Republic of
Series
Dream Drill ALU
Single Or Double End
Single End
Shank Type
Common Shank
Drill Diameter
0.2500" 1/4" 'E'
LOC Multiple
5XD
Coolant Through
With Coolant Holes
