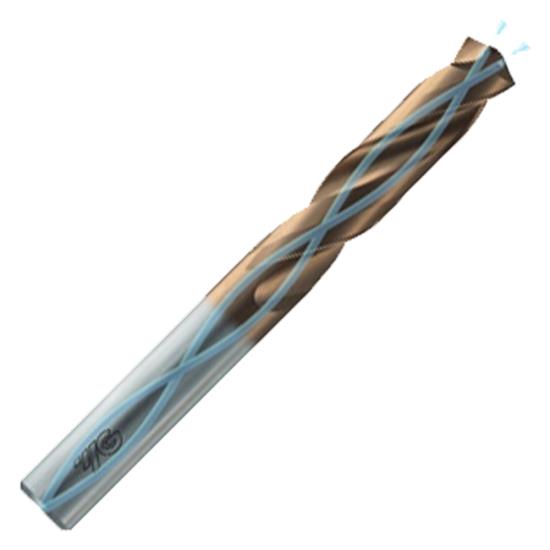

15/32" Diameter 2 Flute YG Carbide Dream Drill Pro For Steels & Cast Iron, 140° Point, 3XD With Coolant Holes, TiSiNx Silicon Based Z-Coating - 12mm Shank, 55mm Flute Length, 102mm OAL

15/32" Diameter 2 Flute YG Carbide Dream Drill Pro For Steels & Cast Iron, 140° Point, 3XD With Coolant Holes, TiSiNx Silicon Based Z-Coating - 12mm Shank, 55mm Flute Length, 102mm OAL
YG-1 TOOL CO.
DGN506030F
DGN506030F
DGN506030F
0.4688" 15/32"
Weight: 0.375 LBS
Brand: YG-1 TOOL CO.
$385.34
(30% off)
$270.24
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information Catalog Page
Product Description

15/32" Diameter 2 Flute Yg Carbide Dream Drill Pro For Steels & Cast Iron, 140° Point, 3Xd With Coolant Holes, Tisinx Silicon Based Z-Coating - 12Mm Shank, 55Mm Flute Length, 102Mm Oal

  • YG Dream Drill Pro for Carbon Steels, Alloy Steels (HB225-325), Pre-hardened Steels (HRc30-50) & Cast Iron
  • Wave shape cutting edge to improve chip formation for low cutting force
  • 140 Degree Point Angle - Provides edge strength and Exceptional tool life, Good Self Centering, Low Torque Usage
  • Micro-grained Carbide - Achieving Excellent Wear Resistance, Maximum Tool Life and High Performance
  • Optimized wide flute design - The unique flute structure provides good surface finish, longer tool life and requires less cutting force
  • Helical thinning for low thrust, stable torque and good chip breakage
  • YG-1 Special Z-Coating Technology (Unique Silicon Based Coating: Nano-Layer Coating) for Extremely High Hardness and Heat Resistance

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
14
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
DGN506030F
Length Of Flute
55 mm
Overall Length
102 mm
Shank Diameter
12mm
Number Of Flutes
2
Drill Point Angle
140°
Drill Type
Ratio Drill 3XD
Helix Angle
30°
Tool Coating
Z-Coating, TiSiNx
Tool Substrate Material
Carbide
Primary Application
Non-Alloy Steels, Alloy Steels, Cast Iron
Hand Cutting Direction
Right Hand Cut
Country of Origin
Korea, Republic of
Series
Dream Drill Pro
Single Or Double End
Single End
Shank Type
Common Shank
Drill Diameter
0.4688" 15/32"
LOC Multiple
3XD
Coolant Through
With Coolant Holes
