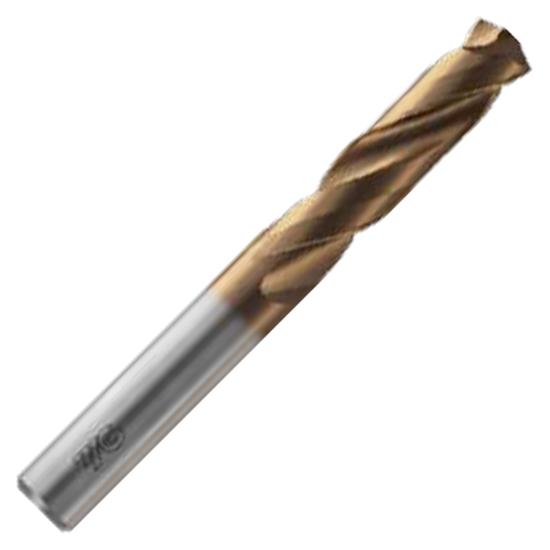

9.7mm Diameter 2 Flute YG Carbide Dream Drill Pro For Steels & Cast Iron, 140° Point, 3XD Without Coolant Holes, TiSiNx Silicon Based Z-Coating - 10mm Shank, 47mm Flute Length, 89mm OAL

YG-1 TOOL CO.

DGN523097

0.3819" 09.70mm

Weight: 0.227 LBS

Brand: YG-1 TOOL CO.

$172.26

(30% off)

$120.81

each

Add To My Favorites

Technical Details & Downloads

Technical/Extra Information

Product Description

9.7Mm Diameter 2 Flute Yg Carbide Dream Drill Pro For Steels & Cast Iron, 140° Point, 3Xd Without Coolant Holes, Tisinx Silicon Based Z-Coating - 10Mm Shank, 47Mm Flute Length, 89Mm Oal

YG Dream Drill Pro for Carbon Steels, Alloy Steels (HB225-325), Pre-hardened Steels (HRc30-50) & Cast Iron
Wave shape cutting edge to improve chip formation for low cutting force
140 Degree Point Angle - Provides edge strength and Exceptional tool life, Good Self Centering, Low Torque Usage
Micro-grained Carbide - Achieving Excellent Wear Resistance, Maximum Tool Life and High Performance
Optimized wide flute design - The unique flute structure provides good surface finish, longer tool life and requires less cutting force
Helical thinning for low thrust, stable torque and good chip breakage
YG-1 Special Z-Coating Technology (Unique Silicon Based Coating: Nano-Layer Coating) for Extremely High Hardness and Heat Resistance

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of

YG-1 TOOL CO. Brand Home

Shipping & Delivery Options

VERNON HILLS, ILLINOIS, USA

Suncoast Shipping Deals

Min. order amount	Shipping Option	Special Rate	Max Weight
$399.00	UPS Ground 1 – 4 Business days (Lower 48 States)	$0.00	10 LBS
$25.00	UPS Ground 1 – 4 Business days (Lower 48 States)	$8.99	15 LBS
$499.00	UPS Blue 2 Business Days	$9.99	7 LBS
$399.00	UPS Blue 2 Business Days	$13.99	5 LBS
$50.00	UPS Blue 2 Business Days	$15.99	6 LBS
$50.00	UPS Red by 10:30am 1 Business Day	$31.99	2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.

$25.00 MINIMUM ORDER

If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day

Factory

Additional Product Details

Technical Details

Manufacturer: YG-1 TOOL CO.
Manufacturer Part Number: DGN523097
Length Of Flute: 47 mm
Overall Length: 89 mm
Shank Diameter: 10mm
Number Of Flutes: 2
Drill Point Angle: 140°
Drill Type: Ratio Drill 3XD
Helix Angle: 30°
Tool Coating: Z-Coating, TiSiNx
Tool Substrate Material: Carbide
Primary Application: Non-Alloy Steels, Alloy Steels, Cast Iron
Hand Cutting Direction: Right Hand Cut
Country of Origin: Korea, Republic of
Series: Dream Drill Pro
Single Or Double End: Single End
Shank Type: Common Shank
Drill Diameter: 0.3819" 09.70mm
LOC Multiple: 3XD
Coolant Through: Without Coolant Holes

9.7mm Diameter 2 Flute YG Carbide Dream Drill Pro For Steels & Cast Iron, 140° Point, 3XD Without Coolant Holes, TiSiNx Silicon Based Z-Coating - 10mm Shank, 47mm Flute Length, 89mm OAL
