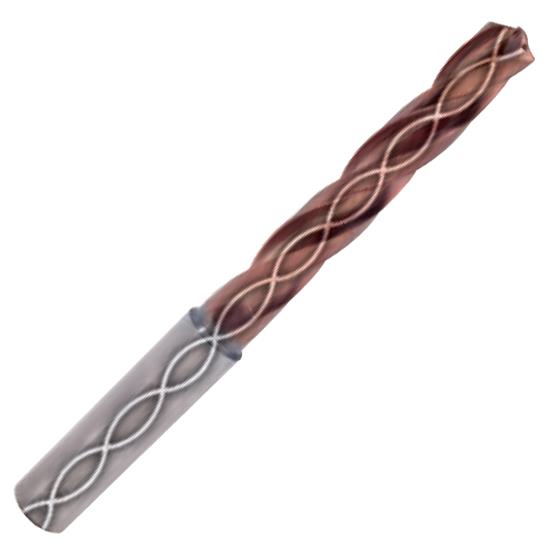

6.8mm Diameter 3 Flute YG Carbide Hi-Feed Dream Drill For Carbon Steel, Alloy Steel < HRc35 & Cast Iron, 140° Point, 5XD With Coolant Holes, AlCrN Based H-Coating - 8mm Shank, 53mm Flute, 91mm OAL

6.8mm Diameter 3 Flute YG Carbide Hi-Feed Dream Drill For Carbon Steel, Alloy Steel < HRc35 & Cast Iron, 140° Point, 5XD With Coolant Holes, AlCrN Based H-Coating - 8mm Shank, 53mm Flute, 91mm OAL 6.8mm Diameter 3 Flute YG Carbide Hi-Feed Dream Drill For Carbon Steel, Alloy Steel < HRc35 & Cast Iron, 140° Point, 5XD With Coolant Holes, AlCrN Based H-Coating - 8mm Shank, 53mm Flute, 91mm OAL 6.8mm Diameter 3 Flute YG Carbide Hi-Feed Dream Drill For Carbon Steel, Alloy Steel < HRc35 & Cast Iron, 140° Point, 5XD With Coolant Holes, AlCrN Based H-Coating - 8mm Shank, 53mm Flute, 91mm OAL 6.8mm Diameter 3 Flute YG Carbide Hi-Feed Dream Drill For Carbon Steel, Alloy Steel < HRc35 & Cast Iron, 140° Point, 5XD With Coolant Holes, AlCrN Based H-Coating - 8mm Shank, 53mm Flute, 91mm OAL 6.8mm Diameter 3 Flute YG Carbide Hi-Feed Dream Drill For Carbon Steel, Alloy Steel < HRc35 & Cast Iron, 140° Point, 5XD With Coolant Holes, AlCrN Based H-Coating - 8mm Shank, 53mm Flute, 91mm OAL 6.8mm Diameter 3 Flute YG Carbide Hi-Feed Dream Drill For Carbon Steel, Alloy Steel < HRc35 & Cast Iron, 140° Point, 5XD With Coolant Holes, AlCrN Based H-Coating - 8mm Shank, 53mm Flute, 91mm OAL 6.8mm Diameter 3 Flute YG Carbide Hi-Feed Dream Drill For Carbon Steel, Alloy Steel < HRc35 & Cast Iron, 140° Point, 5XD With Coolant Holes, AlCrN Based H-Coating - 8mm Shank, 53mm Flute, 91mm OAL 6.8mm Diameter 3 Flute YG Carbide Hi-Feed Dream Drill For Carbon Steel, Alloy Steel < HRc35 & Cast Iron, 140° Point, 5XD With Coolant Holes, AlCrN Based H-Coating - 8mm Shank, 53mm Flute, 91mm OAL
YG-1 TOOL CO.
DGR495068
DGR495068
DGR495068
0.2677" 06.80mm
Weight: 0.107 LBS
Brand: YG-1 TOOL CO.
$227.65
(30% off)
$159.65
each
Add To My Favorites
Technical Details & Downloads
Technical/Extra Information Catalog Page
Product Description

6.8Mm Diameter 3 Flute Yg Carbide High Feed Dream Drill For Carbon Steel, Alloy Steel

  • YG 3 flute carbide High Feed Dream Drills with coolant holes for drilling Carbon Steels, Alloy Steels (up to HRc35) and Cast Iron
  • Higher productivity - Drill 1.5 to 2 times faster than 2 flute drills
  • 3-Cutting Edges & Margins will allow high penetration rate, accurate hole location and good surface finish
  • Radius thinning at the point for good self centering ability and chip breaking
  • Ground Negative land on cutting edge for Reliable Tool Life
  • 3 coolant slots on end of shank for smooth and consistent coolant supply
  • Upgraded AlCrN-Based Multi-Layer H-Coating for higher wear resistance, lower friction, higher cutting speeds and feeds with improved hole quality

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
48
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
DGR495068
Length Of Flute
53 mm
Overall Length
91 mm
Shank Diameter
8mm
Number Of Flutes
3
Drill Point Angle
140°
Drill Type
Ratio Drill 5XD
Helix Angle
30°
Tool Coating
H-Coating, AlCrN
Tool Substrate Material
Carbide
Primary Application
Carbon Steels, Alloy Steels to HRc35, Cast Iron
Hand Cutting Direction
Right Hand Cut
Country of Origin
Korea, Republic of
Series
Dream Drill High Feed
Single Or Double End
Single End
Shank Type
Common Shank
Drill Diameter
0.2677" 06.80mm
LOC Multiple
5XD
Coolant Through
With Coolant Holes
