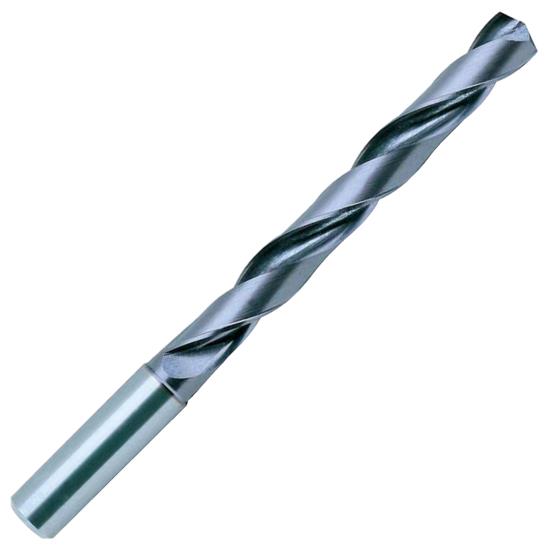

1/8" Diameter 2 Flute YG Carbide Dream Drill For General Purpose, 140° Point, 5XD Without Coolant Holes, TiAlN Coated - 6mm Shank x 28mm Flute Length x 66mm OAL

1/8" Diameter 2 Flute YG Carbide Dream Drill For General Purpose, 140° Point, 5XD Without Coolant Holes, TiAlN Coated - 6mm Shank x 28mm Flute Length x 66mm OAL 1/8" Diameter 2 Flute YG Carbide Dream Drill For General Purpose, 140° Point, 5XD Without Coolant Holes, TiAlN Coated - 6mm Shank x 28mm Flute Length x 66mm OAL 1/8" Diameter 2 Flute YG Carbide Dream Drill For General Purpose, 140° Point, 5XD Without Coolant Holes, TiAlN Coated - 6mm Shank x 28mm Flute Length x 66mm OAL 1/8" Diameter 2 Flute YG Carbide Dream Drill For General Purpose, 140° Point, 5XD Without Coolant Holes, TiAlN Coated - 6mm Shank x 28mm Flute Length x 66mm OAL 1/8" Diameter 2 Flute YG Carbide Dream Drill For General Purpose, 140° Point, 5XD Without Coolant Holes, TiAlN Coated - 6mm Shank x 28mm Flute Length x 66mm OAL 1/8" Diameter 2 Flute YG Carbide Dream Drill For General Purpose, 140° Point, 5XD Without Coolant Holes, TiAlN Coated - 6mm Shank x 28mm Flute Length x 66mm OAL 1/8" Diameter 2 Flute YG Carbide Dream Drill For General Purpose, 140° Point, 5XD Without Coolant Holes, TiAlN Coated - 6mm Shank x 28mm Flute Length x 66mm OAL 1/8" Diameter 2 Flute YG Carbide Dream Drill For General Purpose, 140° Point, 5XD Without Coolant Holes, TiAlN Coated - 6mm Shank x 28mm Flute Length x 66mm OAL 1/8" Diameter 2 Flute YG Carbide Dream Drill For General Purpose, 140° Point, 5XD Without Coolant Holes, TiAlN Coated - 6mm Shank x 28mm Flute Length x 66mm OAL
YG-1 TOOL CO.
DH424008F
DH424008F
DH424008F
0.1250" 1/8"
Weight: 0.017 LBS
Brand: YG-1 TOOL CO.
$85.37
(31% off)
$59.28
each
Add To My Favorites Coupon Available
Technical Details & Downloads

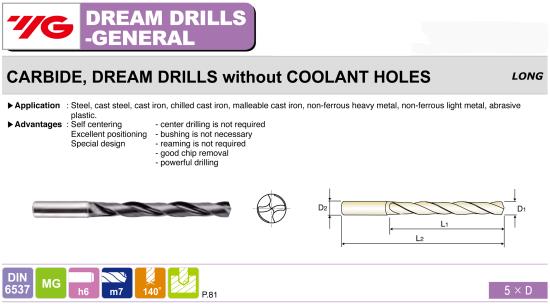

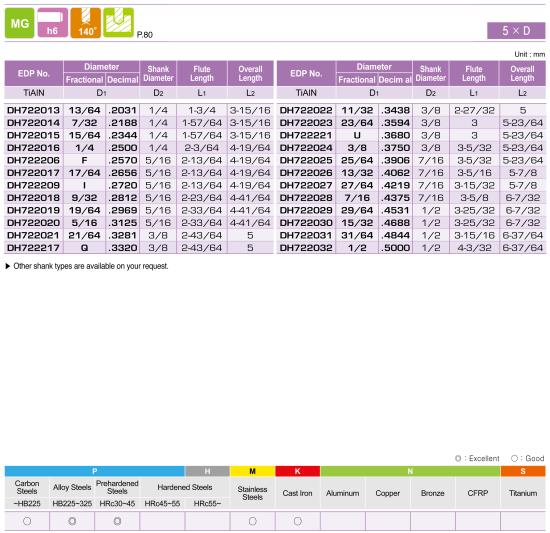

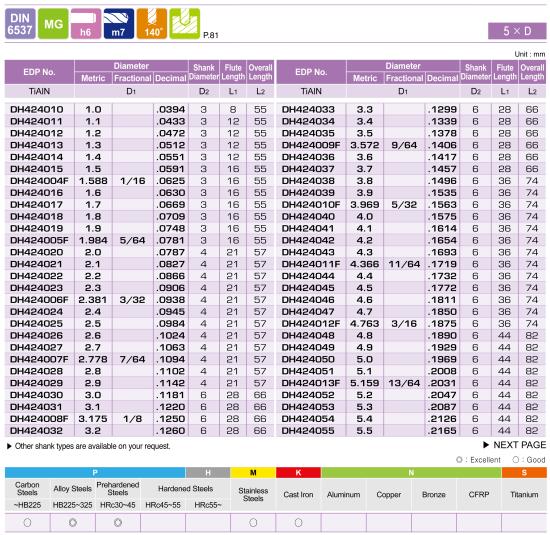

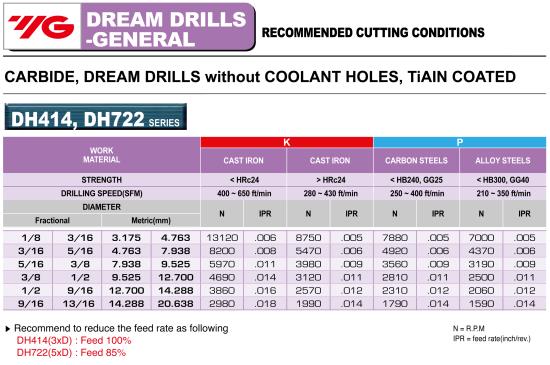

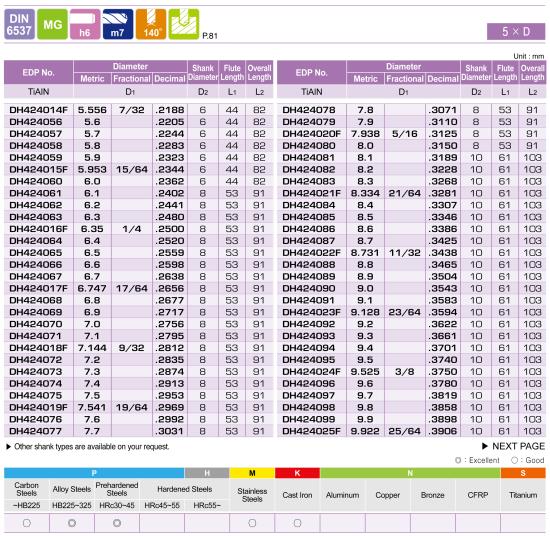

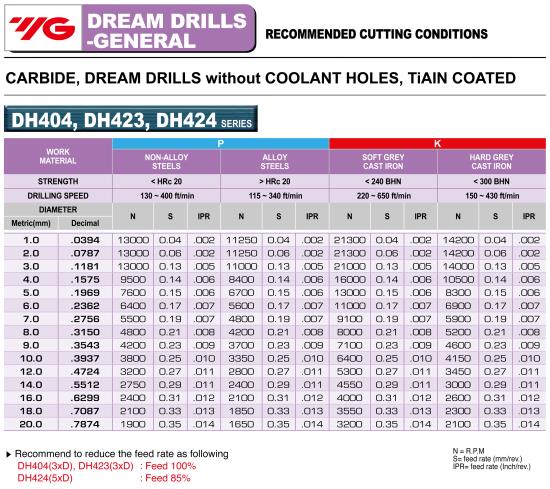

Technical/Extra Information Catalog Page
Product Description

1/8" Diameter 2 Flute Yg Carbide Dream Drill For General Purpose, 140° Point, 5Xd Without Coolant Holes, Tialn Coated - 6Mm Shank X 28Mm Flute Length X 66Mm Oal

  • For general purpose drilling Steel, Cast Steel, Cast Iron & Malleable Cast Iron HRc30 to HRc50
  • Radius thinning at the tip for self-centering and chip breaking
  • 140° point angle, wave shape cutting edge and negative land on the cutting edge for low thrust, stable torque and long tool life
  • Optimized flute shape for strength of drilling and smooth chip evacuation
  • Upgraded TiAlN (Titanium Aluminum Nitride) nano-layer coating for higher wear resistance, lower friction, higher cutting speeds and feeds with Improved drill hole quality
  • Special surface treatment after coating to reduce friction and enhance chip flow

This item is part of our complete offering of YG-1 Cutting Tools, trusted for high-performance CNC machining, consistent quality, and broad application coverage across milling, drilling, threading, tool holding, and indexable operations. Browse YG-1 End Mills for carbide and cobalt milling solutions, YG-1 Hole Making Tools for drills and reamers, YG-1 Threading Tools for taps and thread mills, YG-1 Tool Holders for dependable tool holding solutions, and YG-1 Indexable Tooling for productive insert-based machining. You can also visit our main YG-1 Cutting Tools page to shop the full line and compare sizes, coatings, and performance styles for your application.

Made in Korea, Republic of
Shipping & Delivery Options
VERNON HILLS, ILLINOIS, USA
  • UPS

Suncoast Shipping Deals

Min. order amount Shipping Option Special Rate Max Weight
$399.00 UPS Ground 1 – 4 Business days (Lower 48 States) $0.00 10 LBS
$75.00 Economy (5 - 7 days)**
(This deal only applies to our Local Florida in stock items)		 $0.00 5 LBS
$25.00 UPS Ground 1 – 4 Business days (Lower 48 States) $8.99 15 LBS
$499.00 UPS Blue 2 Business Days $9.99 7 LBS
$399.00 UPS Blue 2 Business Days $13.99 5 LBS
$50.00 UPS Blue 2 Business Days $15.99 6 LBS
$50.00 UPS Red by 10:30am 1 Business Day $31.99 2 LBS
Note: Special vendor shipping deals are destination-based and may not be available in all ZIP codes. If this rate is not available for your shipping address, standard shipping options will be shown at checkout.
$25.00 MINIMUM ORDER
If Ordered By 3pm Eastern Standard Time YG Will Ship Same Business Day
Factory Stock
1
Add to Cart

Additional Product Details

Technical Details

Manufacturer
YG-1 TOOL CO.
Manufacturer Part Number
DH424008F
Length Of Flute
28 mm
Overall Length
66 mm
Shank Diameter
6mm
Number Of Flutes
2
Drill Point Angle
140°
Drill Type
Ratio Drill 5XD
Helix Angle
30°
Tool Coating
TiAlN
Tool Substrate Material
Carbide
Primary Application
Steels, Cast Iron
Hand Cutting Direction
Right Hand Cut
Country of Origin
Korea, Republic of
Series
Dream Drill General
Single Or Double End
Single End
Shank Type
Common Shank
Drill Diameter
0.1250" 1/8"
LOC Multiple
5XD
Coolant Through
Without Coolant Holes
